Asc Engineered Solutions 8700130308 Hex Galvanized Bushing

Product Description

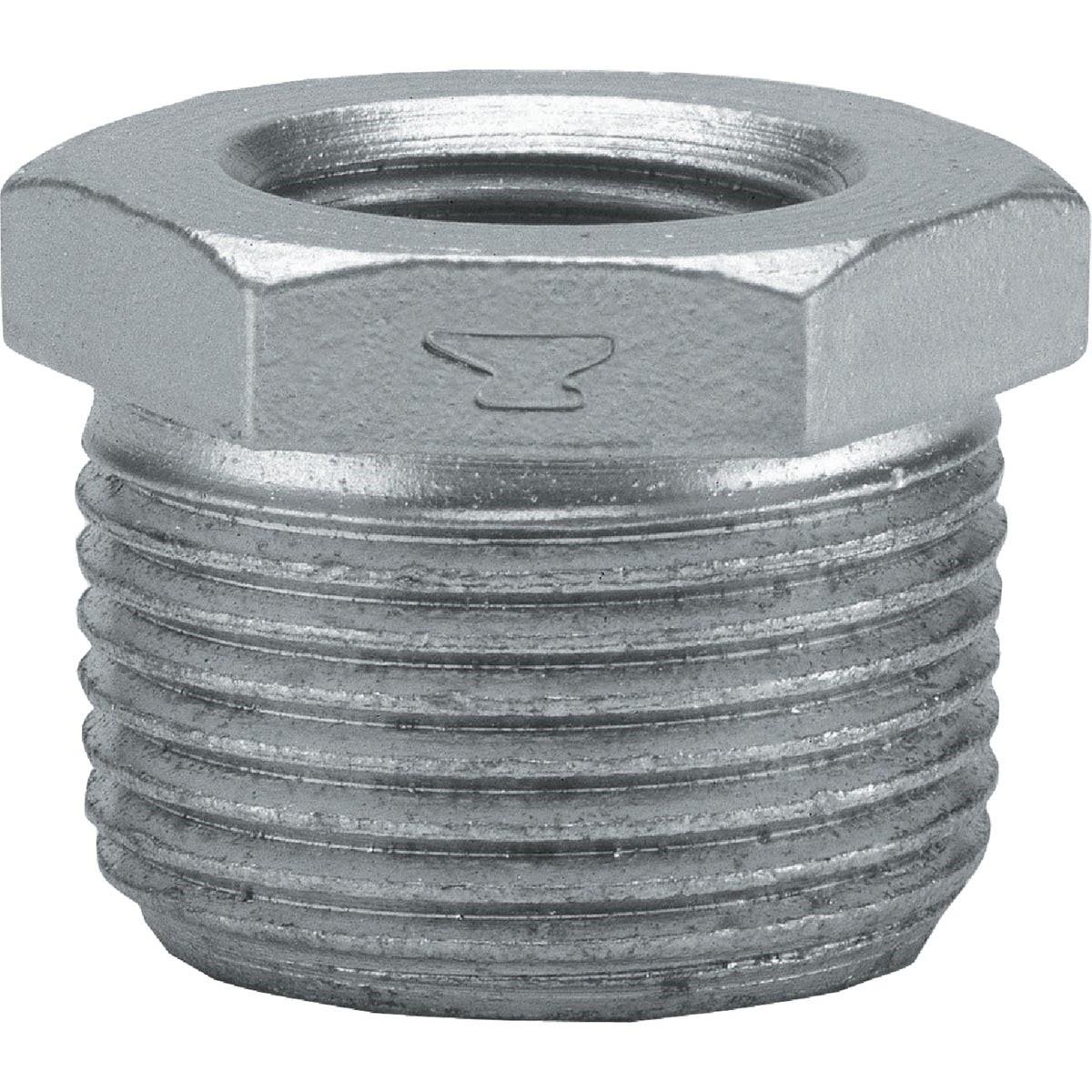

The ASC ENGINEERED SOLUTIONS 8700130308 is a hex galvanized bushing machined from malleable iron, designed to reduce a 1/4-inch male threaded pipe connection down to a 1/8-inch female threaded port. The hexagonal body allows for wrench engagement during installation, ensuring consistent thread engagement and a secure, leak-resistant joint. The hot-dip galvanized finish provides corrosion resistance suitable for standard plumbing and piping systems. This fitting is manufactured to Federal Specification WW-P-471-B, with dimensions conforming to ANSI B-16.14 and pipe threads cut to ANSI B-2.1. It is typically installed by licensed plumbers and pipefitters working on low-pressure piping assemblies.

This bushing is used in residential and light commercial piping systems where a threaded reduction is required between two different pipe sizes. Common applications include water supply lines, compressed air distribution, and general-purpose pipe assemblies where a 1/4-inch male NPT connection must transition to a 1/8-inch female NPT port. The malleable iron construction makes it appropriate for use in both above-ground and protected indoor installations.

Key Features

• Reduces 1/4-inch male NPT to 1/8-inch female NPT in a single fitting
• Malleable iron body provides durability and resistance to mechanical stress
• Galvanized finish resists corrosion in standard indoor piping environments
• Hex body profile allows wrench engagement for proper torque application
• Conforms to Federal Spec WW-P-471-B, ANSI B-16.14, and ANSI B-2.1

Compatibility

Designed as an OEM-style replacement or new-installation bushing for standard NPT threaded malleable iron pipe systems in residential and commercial plumbing and piping applications.

Installation Notes

Installation is performed by licensed plumbers or pipefitters. Shut off and depressurize the piping system completely before threading this bushing into place. Apply an appropriate thread sealant or PTFE tape to the male threads before assembly. Hand-tighten first, then use a wrench on the hex body to complete the joint — avoid over-tightening malleable iron fittings, which can crack the body.

Technical Specifications

• Material: Malleable Iron, Galvanized
• Male Thread Size: 1/4 inches NPT
• Female Thread Size: 1/8 inches NPT
• Body Style: Hex
• Weight: 0.019 pounds
• Standards: Federal Spec WW-P-471-B, ANSI B-16.14, ANSI B-2.1
• UPC: 00690291038037

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 8700130308
