Asc Engineered Solutions 8700128401 45 Deg Street Elbow 1/4 in

Product Description

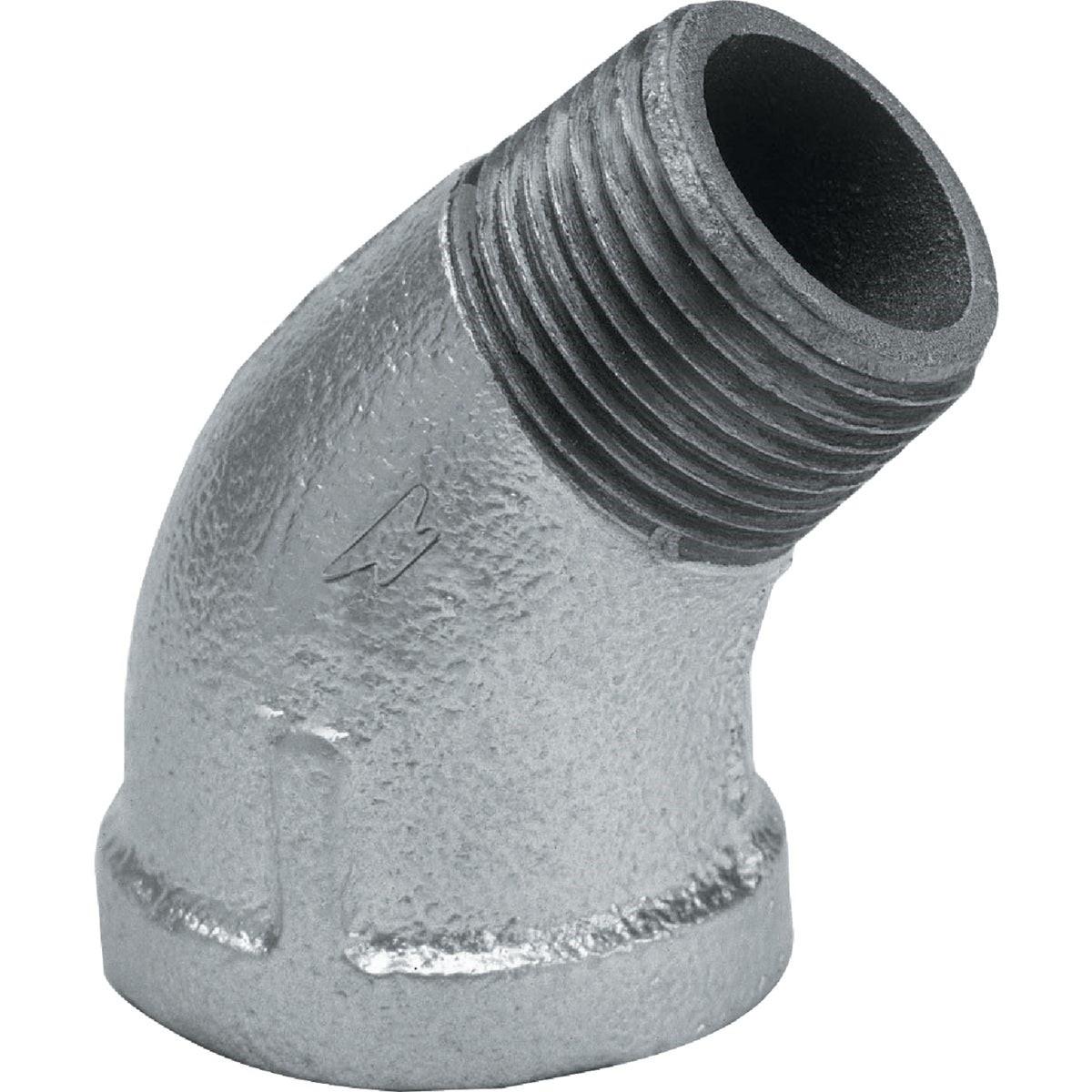

The ASC ENGINEERED SOLUTIONS 8700128401 is a 1/4-inch 45-degree street galvanized malleable iron elbow, also referred to as a 1/8 bend. This fitting is used to redirect pipe runs at a 45-degree angle and features a male thread on one end and a female thread on the other, allowing it to thread directly into a fitting without a separate nipple. The flat banded construction and galvanized finish provide corrosion resistance in wet or exposed environments. This fitting weighs 0.111 pounds and meets Federal Specification WW-P-521F, ANSI B-16.3 for dimensions, ANSI B-2.1 for pipe threads, and ASTM A-197 for chemical and physical properties. It is intended for use by licensed plumbers and pipefitters working on pressure piping systems.

This fitting is suited for residential and commercial plumbing, gas distribution, and general piping applications where a low-angle directional change is needed in a 1/4-inch line. The street configuration eliminates the need for an additional close nipple when connecting directly into a tee, elbow, or valve. Galvanized finish makes it appropriate for installations subject to moisture or mild corrosive conditions. Sold individually.

Key Features

• 45-degree street elbow (1/8 bend) with male and female NPT ends in a single fitting
• Galvanized malleable iron construction for corrosion resistance in wet or exposed environments
• Flat banded design per standard malleable iron fitting geometry
• Meets Federal Spec WW-P-521F, ANSI B-16.3, ANSI B-2.1, and ASTM A-197
• 1/4-inch pipe size, sold as an individual unit

Compatibility

Designed as an OEM-style replacement or new-installation fitting for standard 1/4-inch NPT malleable iron piping systems in residential and commercial plumbing and gas applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and the International Plumbing Code or International Fuel Gas Code where applicable. Shut off and depressurize the line before installation. Apply an appropriate thread sealant or PTFE tape to the male threads before assembly. Do not overtighten; use a pipe wrench with proper support to avoid cracking the fitting body.

Technical Specifications

• Material: Galvanized Malleable Iron
• Pipe Size: 1/4 inch
• Angle: 45 degrees (1/8 bend)
• End Type: Street (Male x Female NPT)
• Weight: 0.111 pounds
• Standards: Federal Spec WW-P-521F, ANSI B-16.3, ANSI B-2.1, ASTM A-197
• UPC: 00690291029004
• Sold As: Each

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 8700128401
