Asc Engineered Solutions 8700128302 Black Iron Street Elbow

Product Description

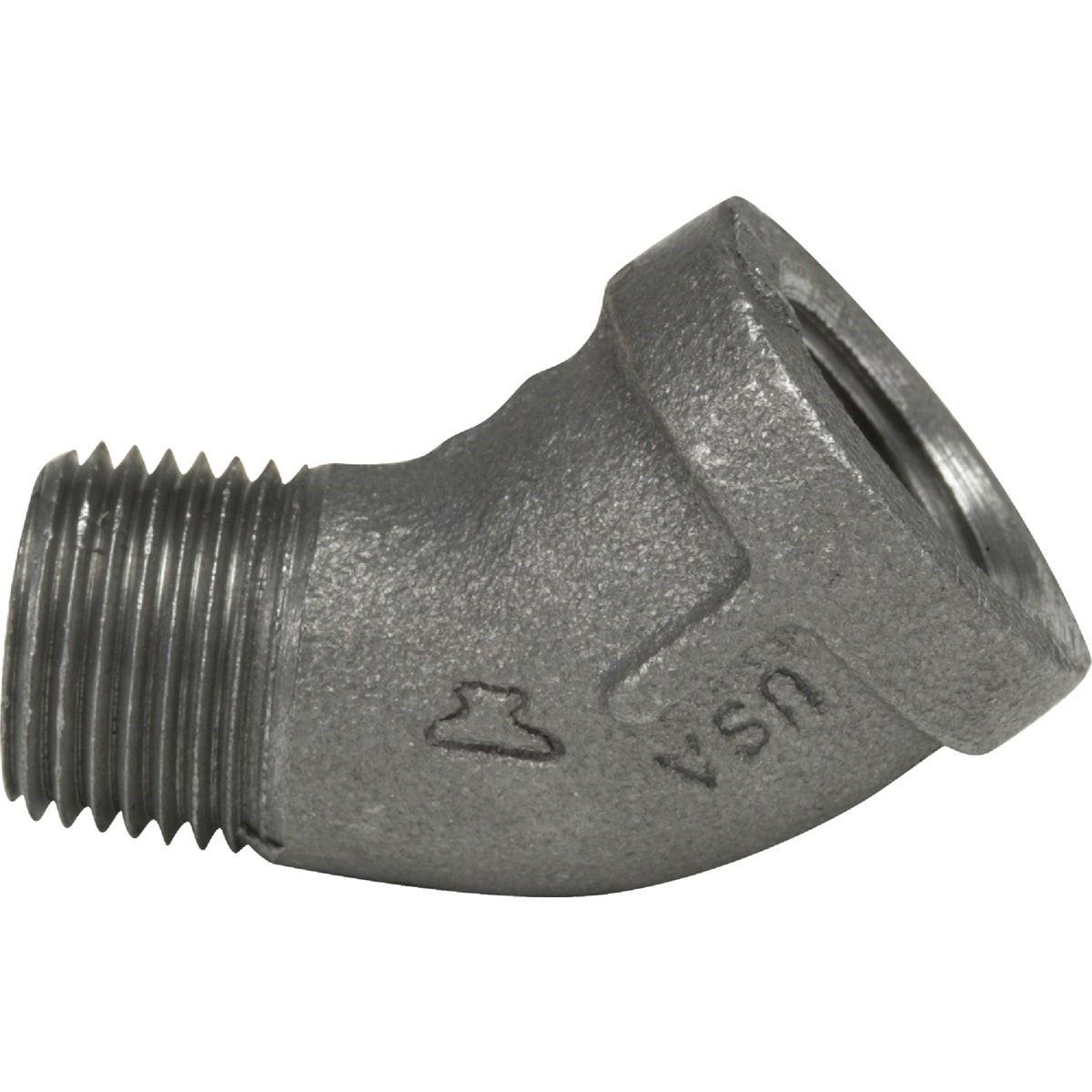

The ASC Engineered Solutions 8700128302 is a 1-inch 45-degree street malleable black iron elbow, also referred to as a 1/4 bend street fitting. It features one male NPT end and one female NPT end, allowing it to be threaded directly into a pipe or fitting without requiring a separate nipple. The fitting is manufactured from malleable black iron and meets Federal Specification WW-P-521F, ANSI B-16.3 for dimensions, ANSI B-2.1 for pipe threads, and ASTM A-197 for chemical and physical properties. Licensed plumbers and pipefitters install this fitting in threaded black iron piping systems.

This fitting is used in residential and commercial black iron piping systems where a 45-degree directional change is required in a tight space. The street configuration eliminates the need for an additional nipple at one connection point, making it useful in close-quarter installations. Typical applications include natural gas distribution piping, steam lines, and general industrial piping where malleable black iron fittings are specified. It is sold individually and is suitable for use wherever flat-banded straight-size malleable iron fittings are required.

Key Features

• 45-degree street elbow configuration with one male NPT and one female NPT end
• 1-inch nominal pipe size for direct connection without an additional nipple
• Malleable black iron construction per ASTM A-197 chemical and physical property requirements
• Dimensions conform to ANSI B-16.3; threads conform to ANSI B-2.1
• Meets Federal Specification WW-P-521F for standard malleable iron fittings
• Flat banded, straight-size design for consistent seating and thread engagement

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-inch threaded black iron pipe systems conforming to ANSI B-16.3 dimensional standards.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and the International Fuel Gas Code (IFGC) or International Plumbing Code (IPC) where gas or fluid piping is involved. Shut off and depressurize the piping system completely before disassembling any threaded connections. Apply an appropriate thread sealant or PTFE tape rated for the service medium before threading the fitting into place. Do not overtighten; use a pipe wrench and back-wrench the mating pipe to avoid stress on adjacent fittings.

Technical Specifications

• Pipe Size: 1 inch
• Fitting Angle: 45 degrees
• Fitting Type: Street Elbow (1/4 Bend)
• Thread Type: NPT (male x female)
• Material: Malleable Black Iron
• Weight: 0.52 pounds
• Standards: Fed. Spec. WW-P-521F, ANSI B-16.3, ANSI B-2.1, ASTM A-197
• Sold As: Each

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 8700128302
