Asc Engineered Solutions 8700128252 3/4 in 45 Deg Street Elbow

Product Description

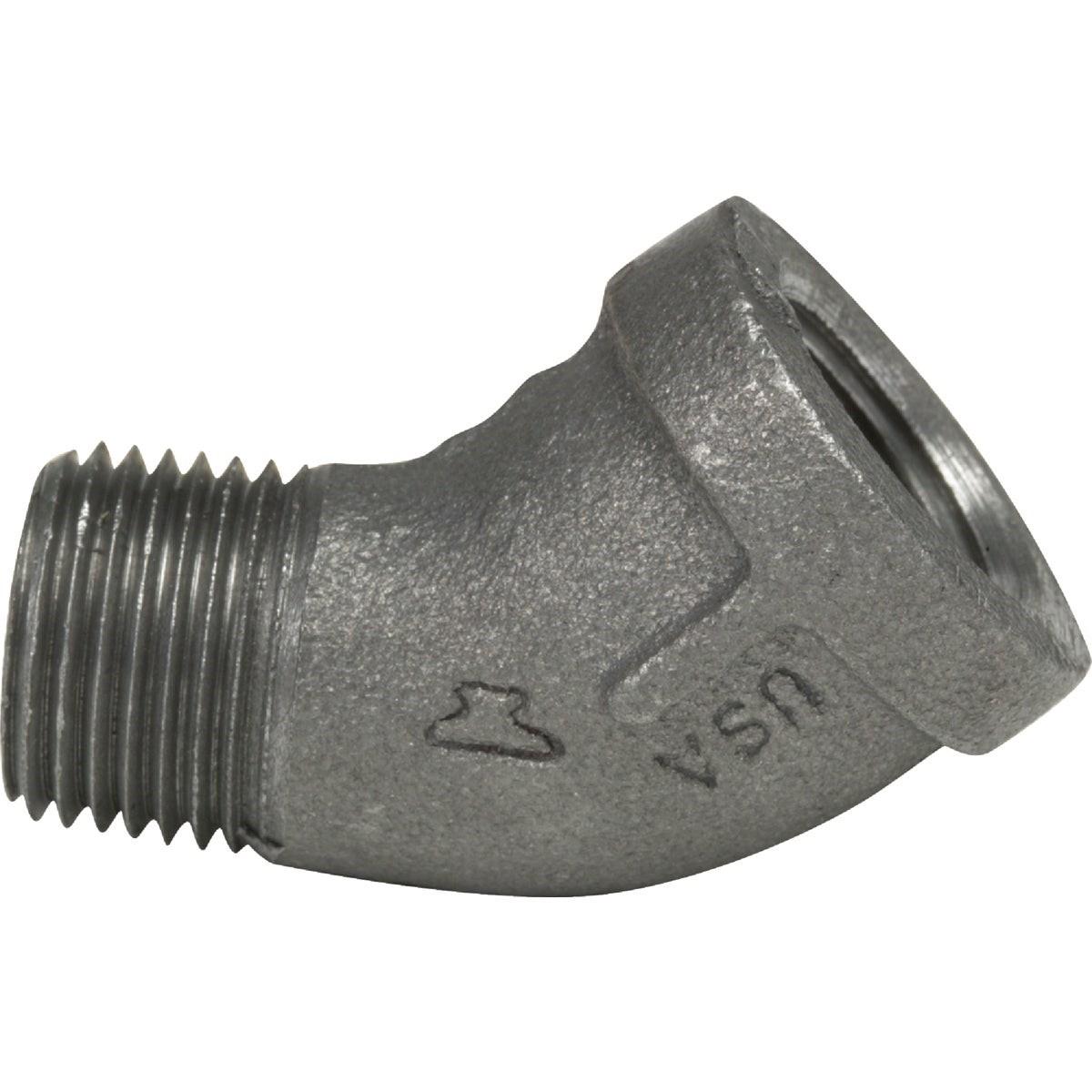

The ASC Engineered Solutions 8700128252 is a 3/4-inch, 45-degree street malleable black iron elbow designed for use in threaded pipe systems. Also referred to as a 1/4 bend, this fitting features one male NPT end and one female NPT end, allowing it to connect directly to another fitting without requiring a separate pipe nipple between them. Constructed from malleable black iron with flat banded straight sizing, it meets Federal Specification WW-P-521F, ANSI B-16.3 for dimensions, ANSI B-2.1 for pipe threads, and ASTM A-197 for chemical and physical properties. Licensed plumbers and pipefitters install this type of fitting in gas distribution, steam, and general-purpose piping applications.

This street elbow is suited for residential and light commercial piping work where a 45-degree directional change is needed in a threaded black iron system. The street configuration eliminates the need for an additional nipple at one end, which saves space in tight installations. Common applications include natural gas lines, low-pressure steam systems, and compressed air distribution. The 3/4-inch size fits standard schedule 40 black iron pipe of the same nominal diameter.

Key Features

• 45-degree street elbow with male NPT inlet and female NPT outlet for direct fitting-to-fitting connection
• Malleable black iron construction per ASTM A-197 chemical and physical property standards
• Dimensions conform to ANSI B-16.3 and pipe threads conform to ANSI B-2.1
• Meets Federal Specification WW-P-521F
• Flat banded straight sizing for consistent makeup and sealing
• Sold individually (each)

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 3/4-inch threaded black iron pipe systems conforming to ANSI B-16.3 dimensional standards.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and the International Fuel Gas Code (IFGC) or International Plumbing Code (IPC) where required. Shut off and depressurize the line before disassembling any existing piping. Apply a listed pipe thread sealant or PTFE tape rated for the intended service to all male threads before makeup. Do not overtighten or use the fitting on systems outside its rated pressure and temperature range for malleable iron per ANSI B-16.3.

Technical Specifications

• Pipe Size: 3/4 inch
• Angle: 45 degrees
• Fitting Type: Street Elbow (1/4 Bend)
• Thread Type: NPT (Male x Female)
• Material: Malleable Black Iron
• Weight: 0.32 pounds
• Standards: Fed. Spec. WW-P-521F, ANSI B-16.3, ANSI B-2.1, ASTM A-197
• UPC: 00690291023866

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 8700128252
