Asc Engineered Solutions 8700127908 1-1/4 in Street Elbow

Product Description

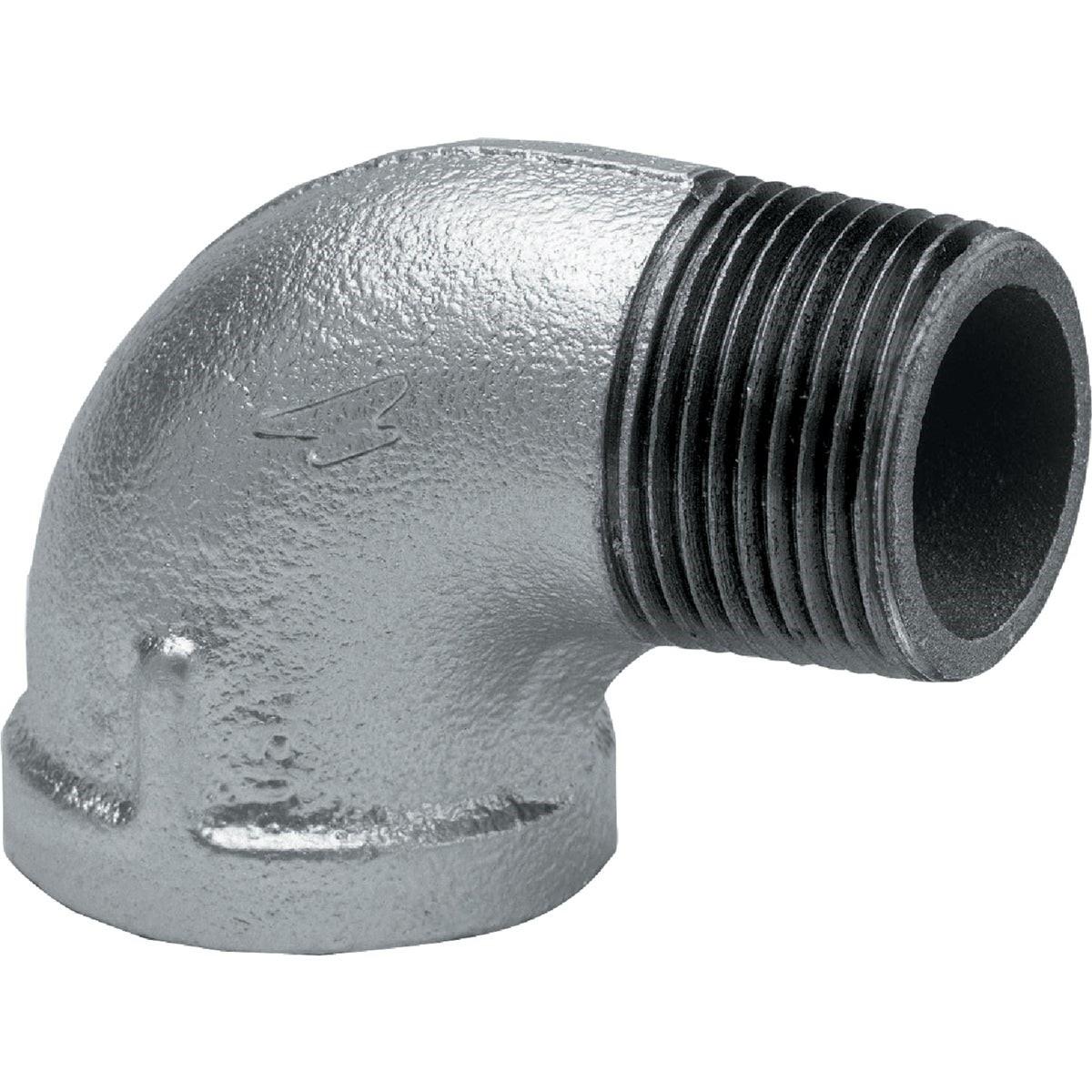

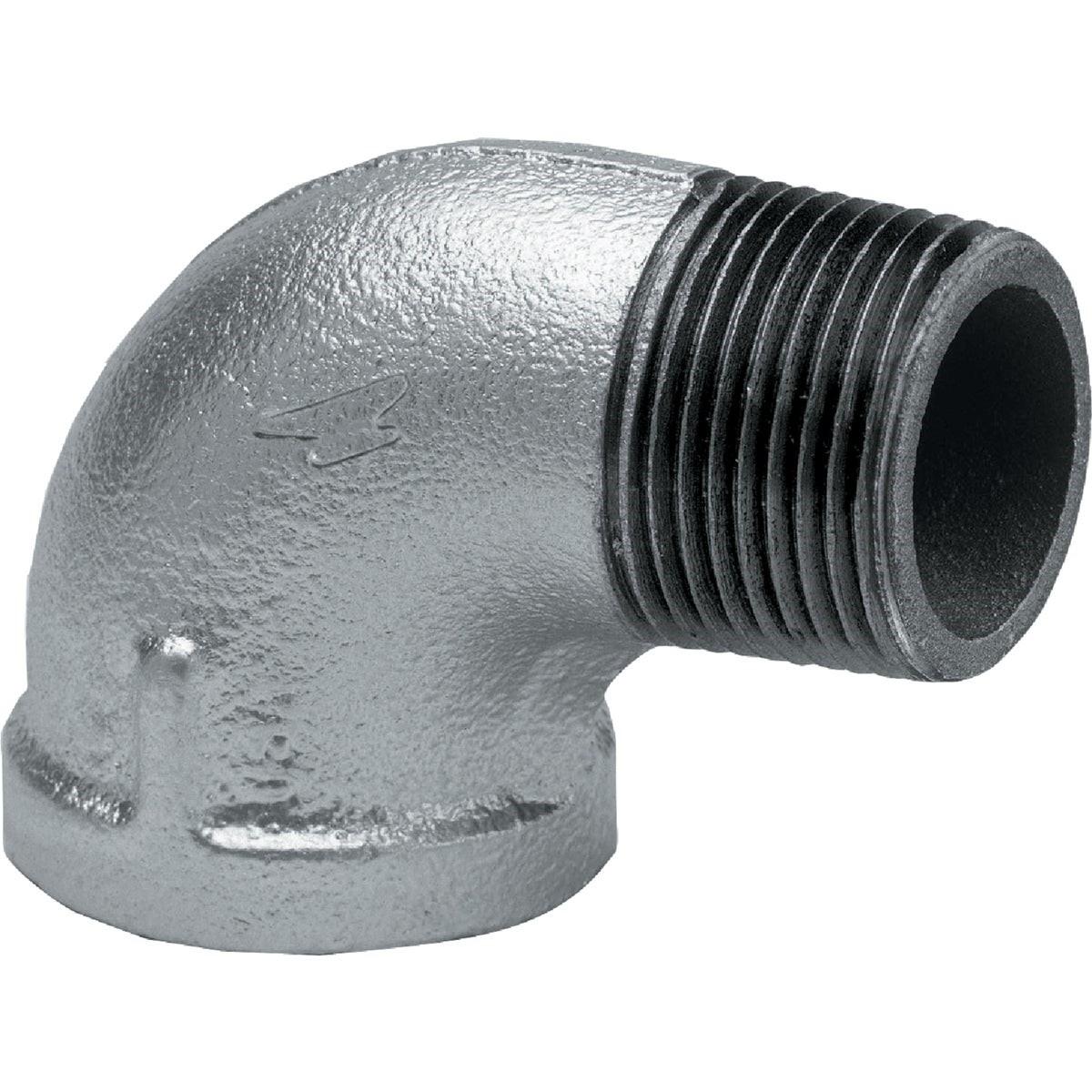

The ASC ENGINEERED SOLUTIONS 8700127908 is a 1-1/4 inch 90-degree street elbow (1/4 bend) made from galvanized malleable iron. Designed for threaded pipe systems, this fitting changes flow direction by 90 degrees using one male and one female threaded end, eliminating the need for an extra nipple in tight spaces. The flat banded straight-size body meets Federal Specification WW-P-521F and conforms to ANSI B-16.3 dimensional standards, ANSI B-2.1 pipe thread standards, and ASTM A-197 chemical and physical property requirements. Plumbers and pipefitters install this fitting in low-pressure water, gas distribution, and mechanical piping systems where galvanized corrosion resistance is required.

This street elbow is suited for residential and light commercial plumbing, fire protection rough-in, and mechanical room piping where 1-1/4 inch threaded connections are specified. It is sold as a single unit and is appropriate for applications requiring a compact directional change without adding pipe length. The galvanized finish provides additional protection against rust and corrosion in exposed or damp installation environments.

Key Features

• 90-degree street elbow configuration with one male and one female threaded end for compact installation
• Galvanized malleable iron construction for corrosion resistance in wet or exposed environments
• Flat banded straight-size body per ANSI B-16.3 dimensional standard
• Pipe threads comply with ANSI B-2.1 for consistent thread fitment
• Material properties conform to ASTM A-197 for malleable iron chemical and physical requirements
• Meets Federal Specification WW-P-521F for standard malleable iron fittings

Compatibility

Designed as an OEM-style replacement and standard-duty fitting for 1-1/4 inch threaded malleable iron piping systems in residential and commercial plumbing and mechanical applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with the applicable International Plumbing Code or local authority requirements. Shut off and depressurize the piping system completely before removing or installing any threaded fittings. Apply an approved thread sealant or PTFE tape to male threads before assembly. Do not over-torque threaded connections, as malleable iron fittings can crack under excessive force.

Technical Specifications

• Material: Galvanized Malleable Iron
• Size: 1-1/4 inches
• Bend Angle: 90 degrees
• Fitting Type: Street Elbow (1/4 Bend)
• Weight: 1.121 pounds
• Dimensional Standard: ANSI B-16.3
• Thread Standard: ANSI B-2.1
• Material Standard: ASTM A-197
• Federal Specification: WW-P-521F
• Sold As: Each

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 8700127908
