Asc Engineered Solutions 8700127858 Street Elbow 90 Deg 1 in

Product Description

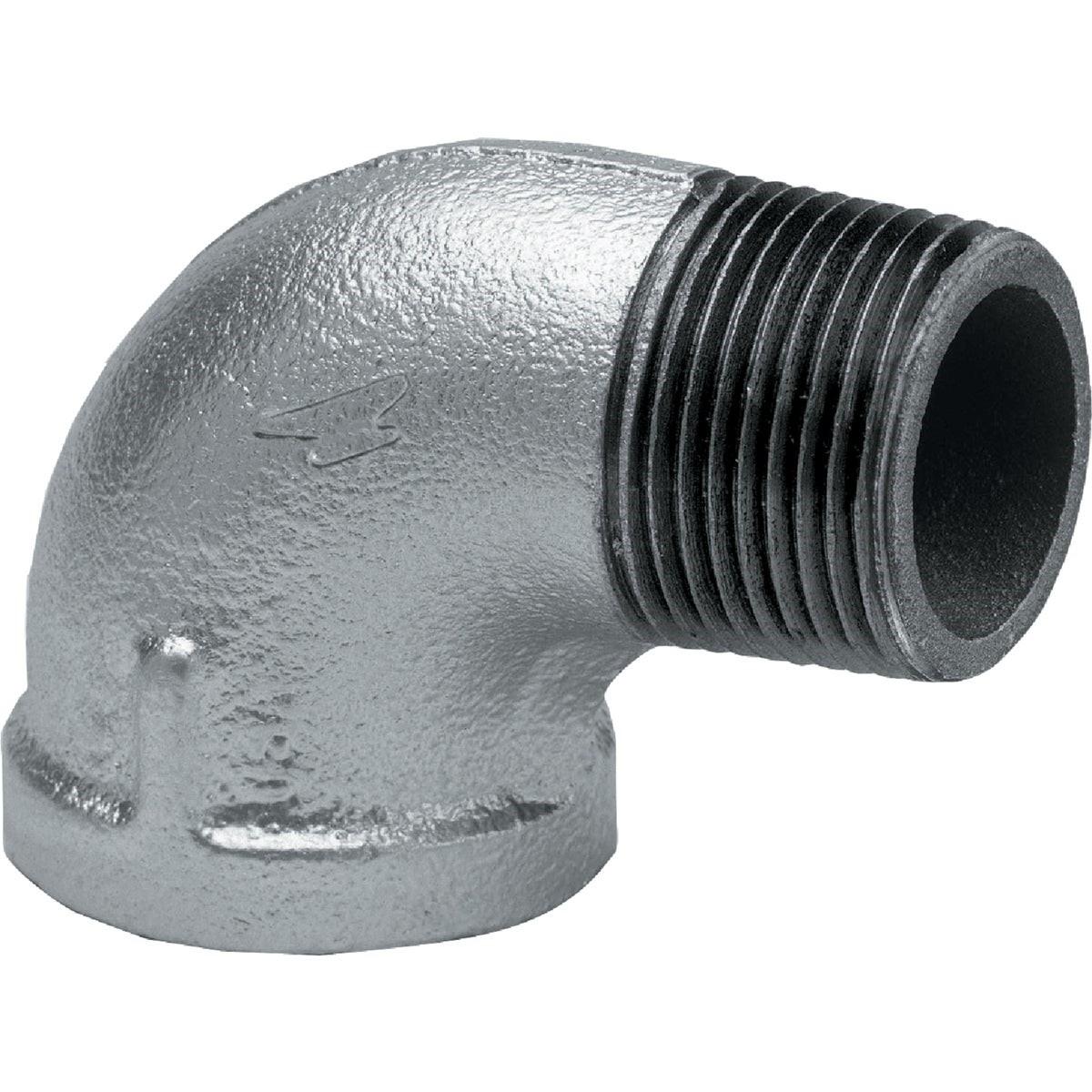

The ASC Engineered Solutions 8700127858 is a 1-inch 90-degree street galvanized malleable iron elbow, also known as a quarter bend, used to change pipe direction in threaded piping systems. One end accepts a male-threaded pipe while the other end is female-threaded, allowing the fitting to connect directly to another fitting without a nipple. The galvanized finish provides corrosion resistance for use in water supply, HVAC piping, and general plumbing applications. At 0.64 pounds, it meets Federal Specification WW-P-521F and is manufactured to ANSI B-16.3 dimensional standards.

This street elbow is suited for residential and light commercial piping installations where a 90-degree direction change is required in a threaded iron pipe system. Common applications include water supply lines, steam and condensate systems, gas distribution piping, and mechanical room rough-in work. The flat banded design is standard for malleable iron fittings in these service categories. Licensed plumbers and pipefitters typically install this fitting as part of threaded black or galvanized iron pipe assemblies.

Key Features

• 90-degree street configuration with one male and one female threaded end for compact directional changes
• Galvanized malleable iron construction provides corrosion resistance for wet service environments
• Flat banded body style consistent with standard malleable iron fitting dimensions per ANSI B-16.3
• Pipe threads conform to ANSI B-2.1 for reliable, leak-resistant connections
• Meets ASTM A-197 chemical and physical property requirements for malleable iron
• Complies with Federal Specification WW-P-521F for government and commercial specification projects

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-inch threaded iron piping systems using standard NPT connections per ANSI B-2.1.

Installation Notes

Installation is performed by licensed plumbers or pipefitters working on threaded iron pipe systems. Shut off and depressurize the line before cutting into any existing piping. Apply an approved thread sealant or PTFE tape to all male threads before assembly and tighten to a snug, wrench-tight fit — do not over-torque malleable iron fittings. Installations must comply with applicable local plumbing codes and the International Plumbing Code where adopted.

Technical Specifications

• Material: Malleable Iron
• Finish: Galvanized
• Pipe Size: 1 inch
• Angle: 90 degrees
• Fitting Type: Street Elbow (Quarter Bend)
• Thread Standard: ANSI B-2.1 NPT
• Dimensional Standard: ANSI B-16.3
• Material Standard: ASTM A-197
• Federal Specification: WW-P-521F
• Weight: 0.64 pounds
• Sold As: Each

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 8700127858
