Asc Engineered Solutions 8700127601 1/8 in 90 Deg Street Elbow

Product Description

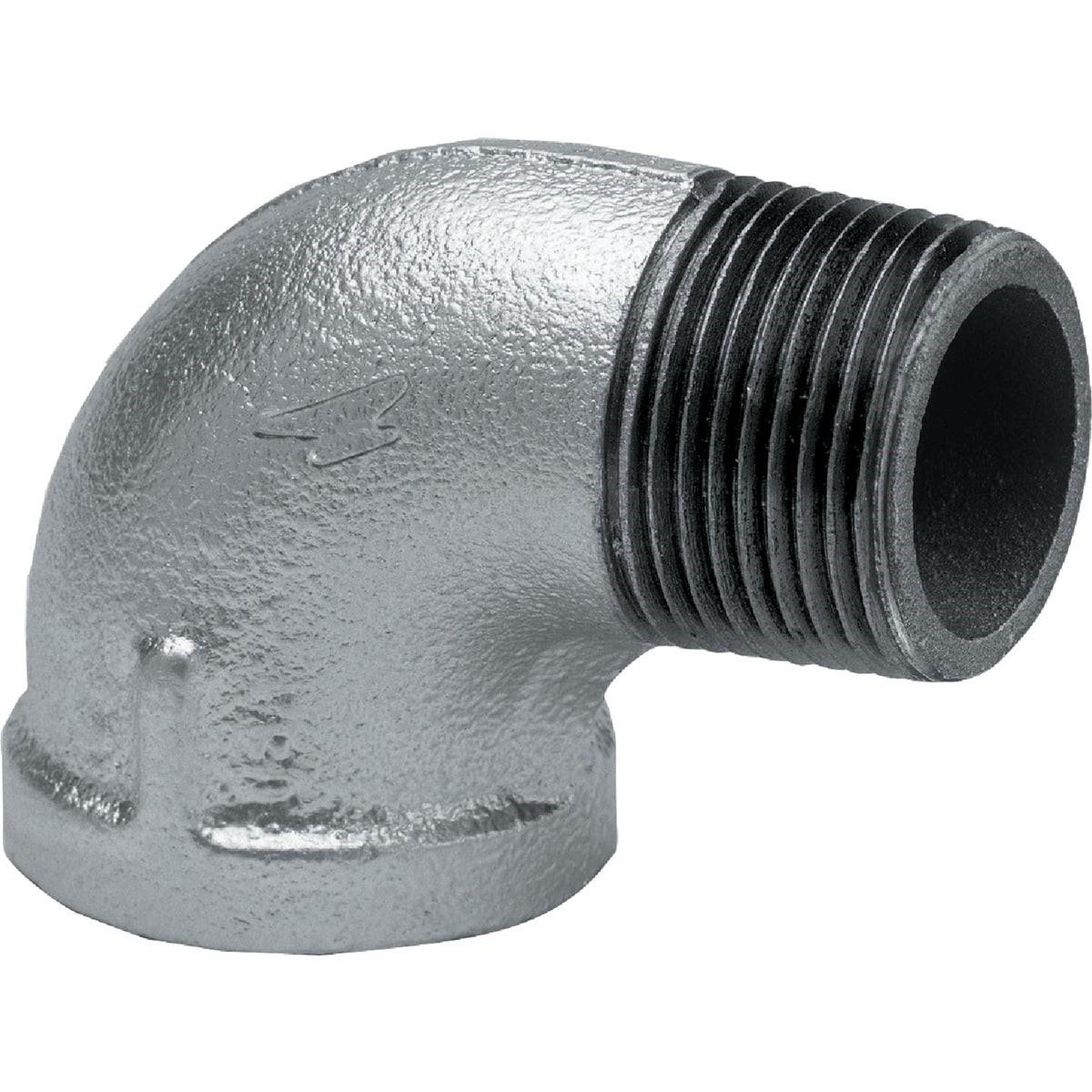

The ASC ENGINEERED SOLUTIONS 8700127601 is a 1/8-inch 90-degree street galvanized malleable iron elbow, also referred to as a 1/4 bend. This fitting accepts a male thread on one end and a female thread on the other, allowing it to change pipe direction 90 degrees without a separate nipple. Manufactured from malleable iron with a galvanized finish, it is built to Federal Specification WW-P-521F and conforms to ANSI B-16.3 for dimensions, ANSI B-2.1 for pipe threads, and ASTM A-197 for chemical and physical properties. Plumbers and pipefitters install this fitting in threaded iron pipe systems where a compact directional change is required.

This elbow is suited for residential and light commercial threaded pipe applications including water distribution, general plumbing, and similar low-pressure piping systems. The street configuration makes it particularly useful in tight spaces where a standard elbow and separate nipple would not fit. The flat banded design is consistent with standard malleable iron fitting patterns, making it easy to source matching components. Licensed plumbers working on threaded iron piping systems are the primary installers of this fitting.

Key Features

• 90-degree street elbow configuration with male inlet and female outlet for compact directional changes
• Galvanized malleable iron construction resists corrosion in typical plumbing environments
• Flat banded straight-size design consistent with standard malleable iron fitting patterns
• Conforms to Federal Specification WW-P-521F for quality assurance
• Meets ANSI B-16.3 dimensional standards and ANSI B-2.1 pipe thread standards
• ASTM A-197 compliance confirms chemical and physical property requirements are met

Compatibility

Designed as an OEM-style replacement or new-installation fitting for standard 1/8-inch threaded malleable iron pipe systems conforming to ANSI B-16.3 dimensional and ANSI B-2.1 thread standards.

Installation Notes

Installation is performed by a licensed plumber using standard pipe wrenches and appropriate thread sealant or PTFE tape applied to the male threads per local plumbing code requirements. Shut off and depressurize the pipe system fully before removing or installing any threaded fitting. Do not overtighten malleable iron fittings, as the material can crack under excessive force. Work must comply with the applicable edition of the International Plumbing Code or local authority having jurisdiction.

Technical Specifications

• Pipe Size: 1/8 inch
• Angle: 90 degrees
• Fitting Type: Street Elbow (1/4 Bend)
• Material: Malleable Iron
• Finish: Galvanized
• Weight: 0.06 pounds
• Standards: Federal Specification WW-P-521F, ANSI B-16.3, ANSI B-2.1, ASTM A-197
• UPC: 00690291028649

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 8700127601
