Asc Engineered Solutions 8700126850 Galvanized Elbow 2 in

Product Description

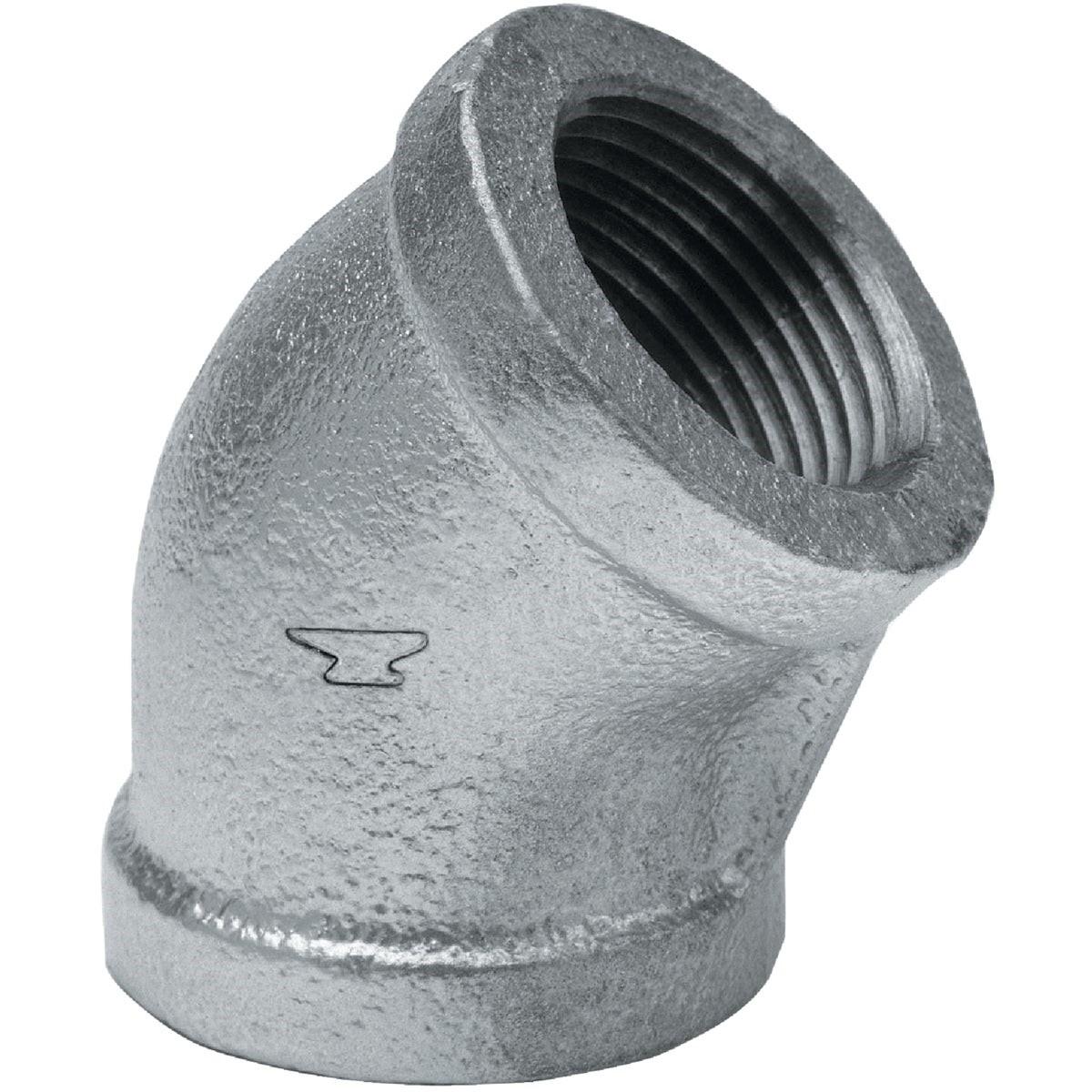

The ASC Engineered Solutions 8700126850 is a 2-inch, 45-degree malleable iron elbow with a galvanized finish, commonly referred to as a 1/8 bend. It is a flat-banded, threaded fitting designed for use in low-pressure pipe systems carrying water, steam, gas, or air. Manufactured to meet Federal Specification WW-P-521F, ANSI B-16.3 dimensional standards, ANSI B-2.1 pipe thread standards, and ASTM A-197 chemical and physical property requirements, this fitting is built for reliable service in standard piping installations. Plumbers and pipefitters install this fitting to redirect flow at a 45-degree angle in threaded malleable iron pipe assemblies.

This 45-degree elbow is suited for residential and light commercial plumbing, HVAC piping, and general mechanical systems where a directional change of 45 degrees is required in a 2-inch threaded line. Its galvanized coating provides corrosion resistance for applications exposed to moisture or outdoor environments. The flat-banded design is consistent with standard malleable iron fitting profiles used throughout the trade.

Key Features

• 45-degree directional change in a 2-inch threaded pipe run
• Galvanized finish for corrosion resistance in wet or outdoor environments
• Flat-banded malleable iron construction per ASTM A-197
• Dimensions conform to ANSI B-16.3 standard
• Pipe threads conform to ANSI B-2.1 standard
• Meets Federal Specification WW-P-521F

Compatibility

Designed as an OEM-style replacement or new-installation fitting for standard 2-inch threaded malleable iron pipe systems in plumbing and mechanical applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off and depressurize the pipe system completely before removing or installing any threaded fittings. Apply an approved thread sealant or PTFE tape to the male threads before assembly to ensure a leak-free joint. Do not overtighten threaded connections, as malleable iron fittings can crack under excessive force.

Technical Specifications

• Material: Malleable Iron
• Finish: Galvanized
• Pipe Size: 2 inches
• Angle: 45 Degrees (1/8 Bend)
• Pattern: Flat Banded
• Thread Standard: ANSI B-2.1
• Dimensional Standard: ANSI B-16.3
• Material Standard: ASTM A-197
• Federal Specification: WW-P-521F
• Weight: 1.85 pounds
• Sold As: Each

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 8700126850
