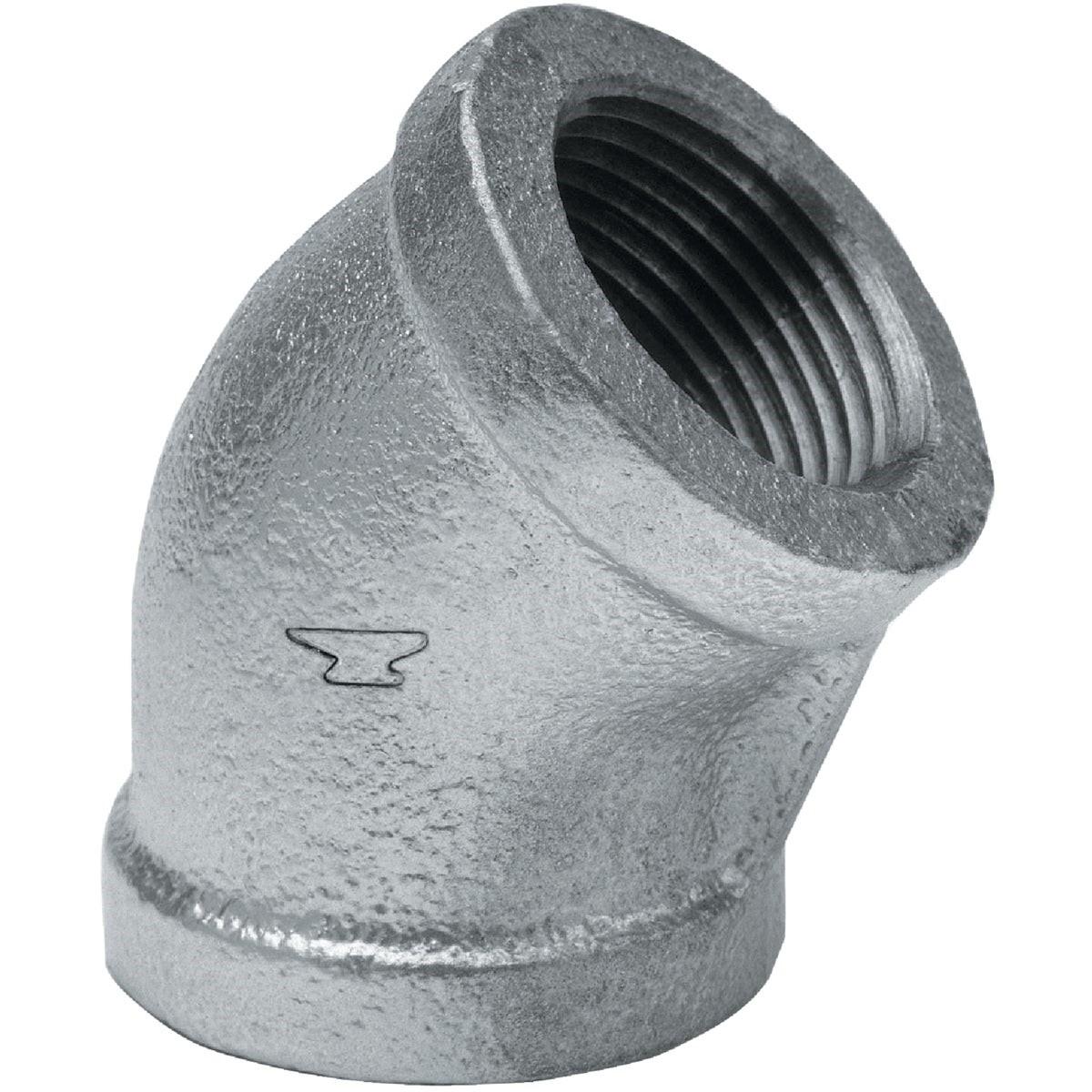

Asc Engineered Solutions 8700126702 45 Deg Galvanized Elbow 1 in

Product Description

The ASC Engineered Solutions 8700126702 is a 1-inch 45-degree malleable iron galvanized elbow, also known as a 1/8 bend, used to change pipe direction in low-pressure piping systems. Manufactured from malleable iron with a flat-banded galvanized finish, this fitting meets Federal Specification WW-P-521F, ANSI B-16.3 dimensional standards, ANSI B-2.1 pipe thread standards, and ASTM A-197 chemical and physical property requirements. Plumbers and pipefitters install this fitting in water, gas, and general-purpose piping systems where a gradual 45-degree directional change is required.

This 45-degree elbow is suited for residential and light commercial plumbing, fire protection, and industrial piping applications. It is threaded for standard NPT connections and is commonly used in branch or main line runs where a 1/8 bend offset is needed. The galvanized finish provides corrosion resistance for use in exposed or damp environments. Sold individually, this fitting is a standard stocked item for plumbing contractors, mechanical rooms, and pipe fabrication work.

Key Features

• Malleable iron construction meets ASTM A-197 chemical and physical property requirements
• Galvanized flat-banded finish for corrosion resistance in exposed or wet environments
• 45-degree bend angle (1/8 bend) for gradual directional change in piping runs
• Dimensionally compliant with ANSI B-16.3 and threaded to ANSI B-2.1 NPT standards
• Meets Federal Specification WW-P-521F for standard malleable iron fittings

Compatibility

Designed as an OEM-style replacement and standard-use fitting for 1-inch NPT threaded piping systems in plumbing, gas, and general-purpose mechanical applications.

Installation Notes

Installation is performed by a licensed plumber or pipefitter following applicable IPC or IFGC code requirements. Shut off and depressurize the piping system completely before removing any existing fittings or making new connections. Apply an appropriate thread sealant or PTFE tape to the male NPT threads before assembly. Do not over-tighten threaded connections, as malleable iron fittings can crack under excessive torque.

Technical Specifications

• Material: Malleable Iron
• Finish: Galvanized
• Size: 1 inch
• Bend Angle: 45 degrees (1/8 Bend)
• Thread Standard: ANSI B-2.1 NPT
• Dimensional Standard: ANSI B-16.3
• Material Standard: ASTM A-197
• Federal Specification: WW-P-521F
• Weight: 0.57 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 8700126702
