Asc Engineered Solutions 8700126207 Black Iron 45 Degree Elbow 3/4 in

Product Description

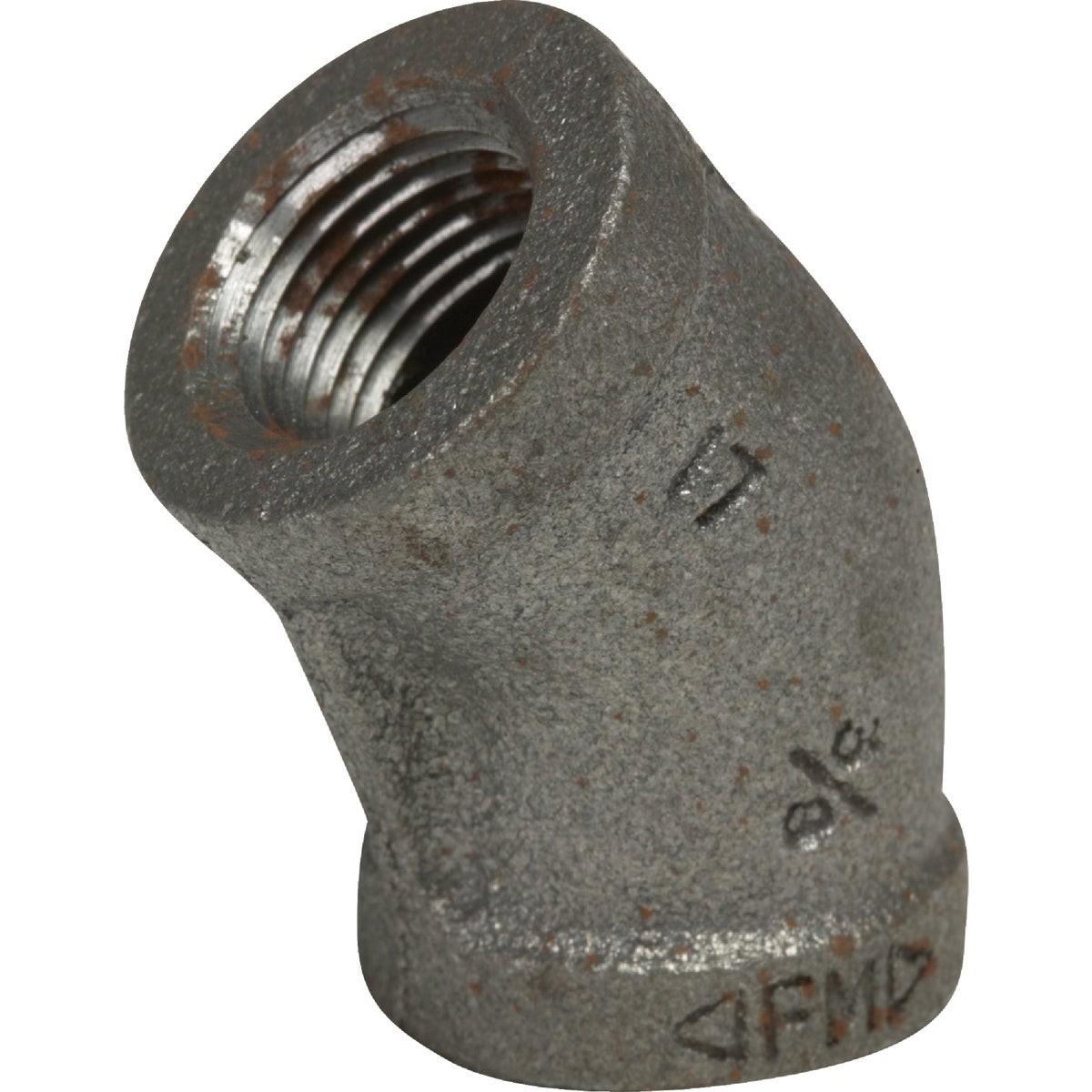

The ASC ENGINEERED SOLUTIONS 8700126207 is a 3/4 inch malleable black iron 45 degree elbow, also referred to as a 1/8 bend. This threaded pipe fitting redirects flow at a 45 degree angle and is designed for use in low-pressure piping systems. Constructed from malleable iron with a flat banded body, it meets Federal Specification WW-P-521F, ANSI B-16.3 for dimensional standards, ANSI B-2.1 for pipe thread specifications, and ASTM A-197 for chemical and physical properties. Licensed plumbers and pipefitters install this fitting in commercial and residential applications where a moderate directional change in the pipe run is required.

This fitting is suited for use in gas, steam, and water piping systems that call for standard malleable iron threaded fittings. The 45 degree angle makes it a practical choice for offsetting pipe runs in tight spaces or where a full 90 degree turn is not practical. It is commonly installed in mechanical rooms, boiler rooms, and utility piping installations where black iron threaded pipe is the specified material.

Key Features

• 45 degree elbow angle provides a gradual directional change in threaded pipe runs
• 3/4 inch nominal pipe size with standard NPT threading per ANSI B-2.1
• Malleable iron construction meets ASTM A-197 chemical and physical property requirements
• Flat banded body style per ANSI B-16.3 dimensional standard
• Compliant with Federal Specification WW-P-521F for malleable iron fittings
• Sold individually, making it straightforward to order exact quantities needed

Compatibility

Designed as an OEM-style replacement and standard fitting for use with 3/4 inch black iron threaded pipe systems conforming to ANSI B-16.3 and ANSI B-2.1 specifications.

Installation Notes

Installation is performed by licensed plumbers or pipefitters following applicable local codes and IFGC or IPC requirements depending on the service. Shut off and depressurize the pipe system completely before removing or installing any threaded fitting. Apply an appropriate thread sealant or PTFE tape to the male threads before assembly. Do not overtighten, as malleable iron fittings can crack under excessive torque applied without proper technique.

Technical Specifications

• Material: Malleable Black Iron
• Pipe Size: 3/4 inch
• Elbow Angle: 45 degrees
• Body Style: Flat Banded
• Thread Standard: ANSI B-2.1 NPT
• Dimensional Standard: ANSI B-16.3
• Material Standard: ASTM A-197
• Federal Specification: WW-P-521F
• Weight: 0.37 pounds
• Sold As: Each

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 8700126207
