Asc Engineered Solutions 8700125308 Reducing Elbow

Product Description

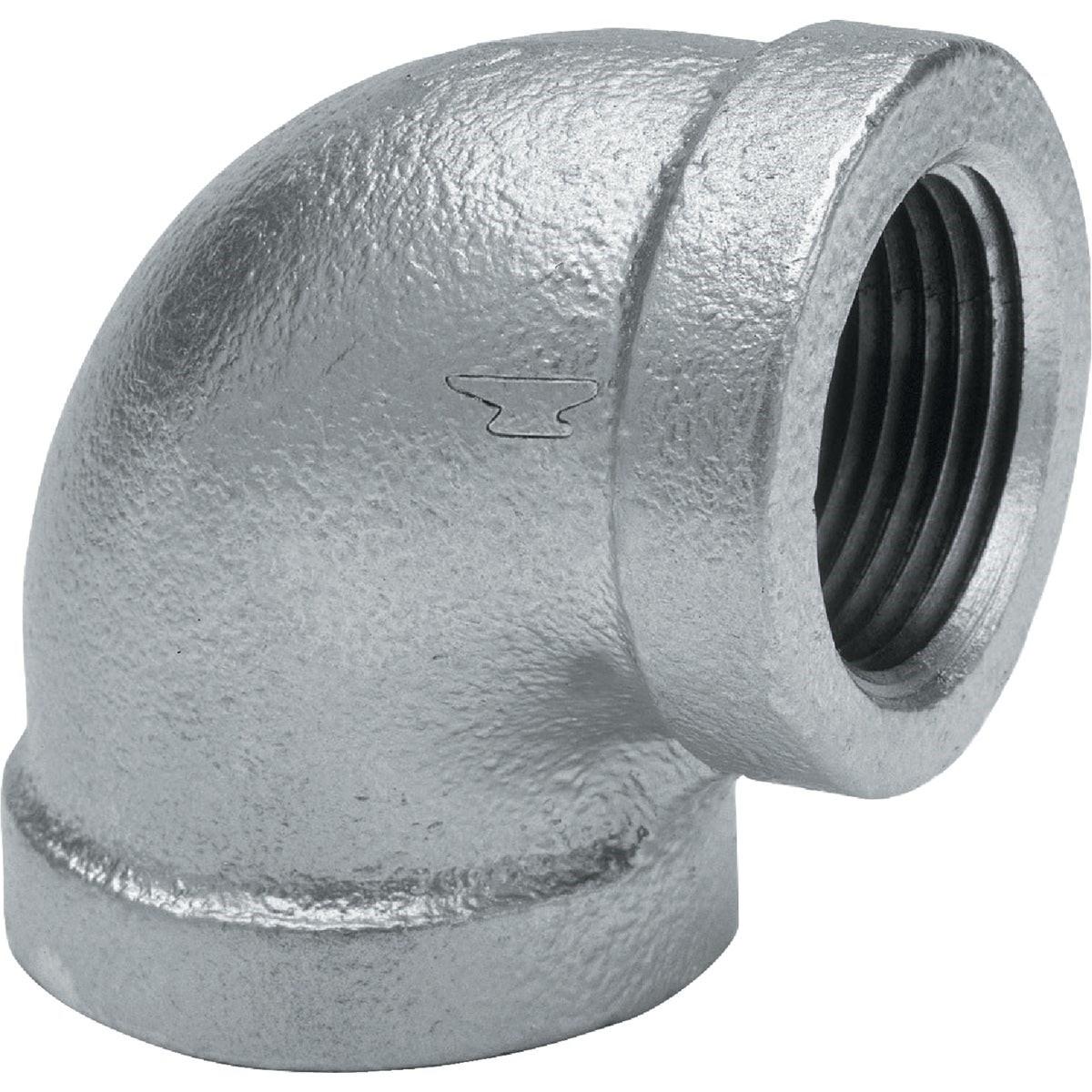

The ASC ENGINEERED SOLUTIONS 8700125308 is a 90-degree reducing galvanized elbow, also known as a 1/4 bend, designed to connect a 1/2-inch pipe to a 3/8-inch pipe at a right angle. Constructed from malleable iron with a flat banded profile and a galvanized finish, this fitting provides corrosion resistance suitable for threaded piping systems in demanding environments. It conforms to Federal Specification WW-P-521F, ANSI B-16.3 for dimensions, ANSI B-2.1 for pipe threads, and ASTM A-197 for chemical and physical properties. Licensed plumbers and pipefitters install this fitting as part of standard threaded iron pipe assemblies.

This reducing elbow is used in residential and light commercial threaded piping applications where a direction change and pipe size reduction are needed at the same connection point. Common installation scenarios include water distribution, gas supply lines, and industrial piping systems where galvanized malleable iron fittings are specified. The threaded ends conform to ANSI B-2.1 standards, making them compatible with standard NPT-threaded pipe and fittings.

Key Features

• 90-degree reducing elbow connects 1/2-inch to 3/8-inch threaded pipe in a single fitting
• Malleable iron construction meets ASTM A-197 chemical and physical property requirements
• Galvanized finish provides corrosion resistance for piping system longevity
• Flat banded design per ANSI B-16.3 dimensional standard
• NPT pipe threads conform to ANSI B-2.1 for consistent thread engagement
• Meets Federal Specification WW-P-521F for standard malleable iron fittings

Compatibility

Designed as an OEM-style replacement and standard fitting for threaded malleable iron piping systems using 1/2-inch and 3/8-inch NPT pipe connections.

Installation Notes

Installation is performed by a licensed plumber or pipefitter following applicable IPC or IFGC code requirements for the piping system type. Shut off the supply line and depressurize the system fully before removing or installing any threaded fittings. Apply an appropriate thread sealant or PTFE tape to the male threads before assembly and tighten to a firm, wrench-tight engagement. Avoid over-torquing malleable iron fittings, as the material can crack under excessive force.

Technical Specifications

• Inlet Size: 1/2 inch
• Outlet Size: 3/8 inch
• Angle: 90 degrees
• Material: Malleable Iron
• Finish: Galvanized
• Weight: 0.22 pounds
• Thread Standard: ANSI B-2.1 NPT
• Dimensional Standard: ANSI B-16.3
• Material Standard: ASTM A-197
• Federal Specification: WW-P-521F

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 8700125308
