Asc Engineered Solutions 8700124400 2 in Malleable Iron 90 Elbow

Product Description

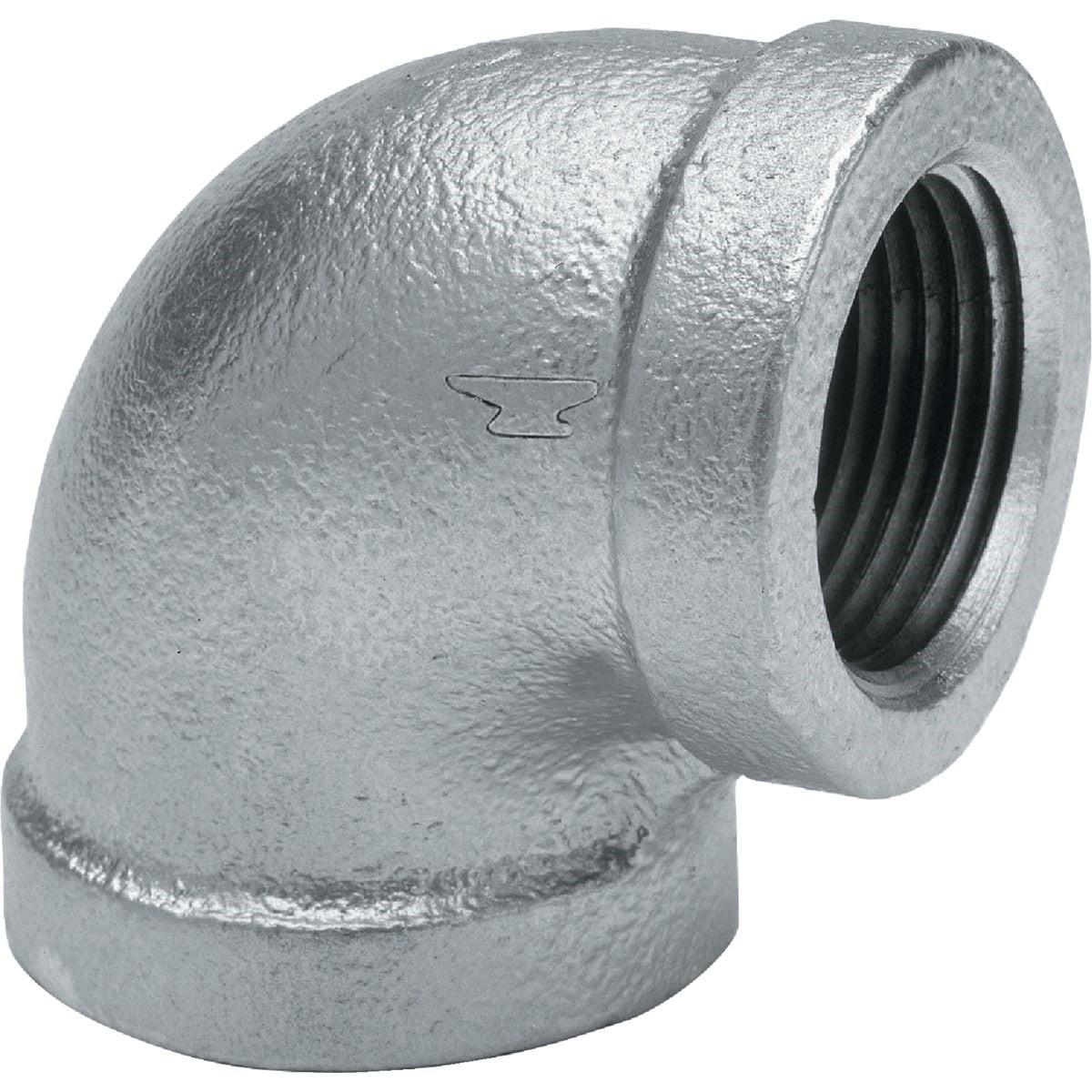

The ASC ENGINEERED SOLUTIONS 8700124400 is a 2-inch malleable iron 90-degree elbow, also known as a 1/4 bend, used to change pipe direction in threaded piping systems. The flat banded body meets Federal Specification WW-P-521F, ANSI B-16.3 for dimensions, ANSI B-2.1 for pipe threads, and ASTM A-197 for chemical and physical properties. Weighing 2.01 pounds, this fitting is built for durability in standard pressure service. Plumbers and pipefitters specify malleable iron fittings where a reliable, code-compliant threaded connection is required in gas, water, or general service piping.

This 90-degree elbow is used in residential and commercial piping installations where a right-angle direction change is needed on a 2-inch threaded line. Typical applications include gas distribution piping, steam and hot water systems, and general industrial or mechanical room service lines. The NPT-compatible threaded ends conform to ANSI B-2.1, making this fitting compatible with standard pipe thread systems used throughout the trade.

Key Features

• 90-degree elbow (1/4 bend) changes pipe direction at a right angle in threaded piping systems
• Malleable iron construction meets ASTM A-197 chemical and physical property standards
• Flat banded body style for standard service applications
• Dimensional compliance with ANSI B-16.3 for consistent fit with standard pipe and fittings
• ANSI B-2.1 pipe threads ensure compatibility with NPT threaded pipe
• Meets Federal Specification WW-P-521F for government and commercial applications

Compatibility

Designed as an OEM-style replacement and standard fitment for 2-inch NPT threaded malleable iron piping systems in residential and commercial mechanical applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and the IFGC or IPC as required by the service type. Shut off and depressurize the pipe system completely before removing or installing any threaded fitting. Apply an appropriate thread sealant or PTFE tape to NPT threads before assembly. Do not over-tighten; inspect for leaks after restoring system pressure.

Technical Specifications

• Material: Malleable Iron
• Pipe Size: 2 inches
• Angle: 90 degrees (1/4 Bend)
• Body Style: Flat Banded
• Thread Standard: ANSI B-2.1 NPT
• Dimensional Standard: ANSI B-16.3
• Material Standard: ASTM A-197
• Federal Specification: WW-P-521F
• Weight: 2.01 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 8700124400
