Asc Engineered Solutions 8700124004 90 Degree Elbow 1/8 in

Product Description

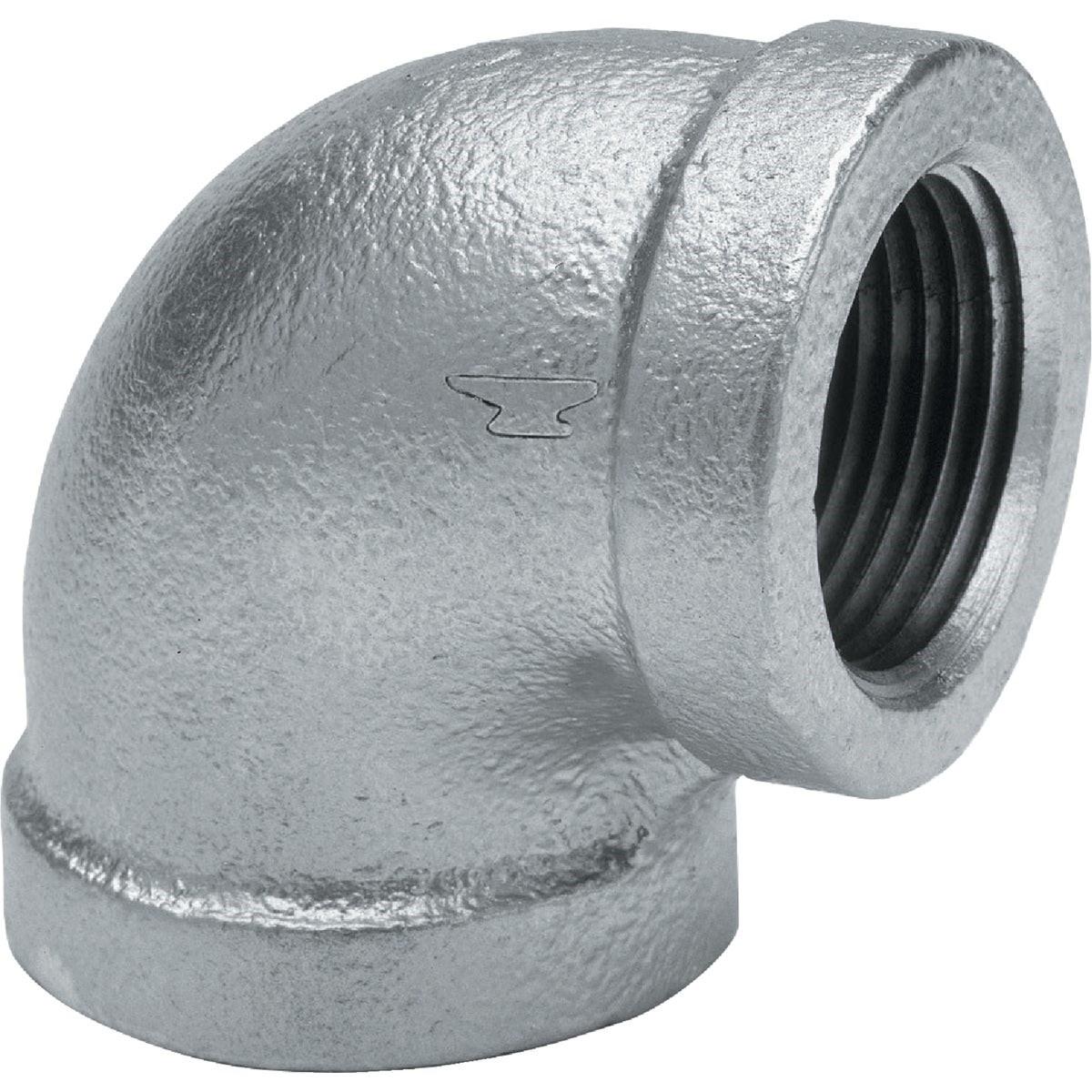

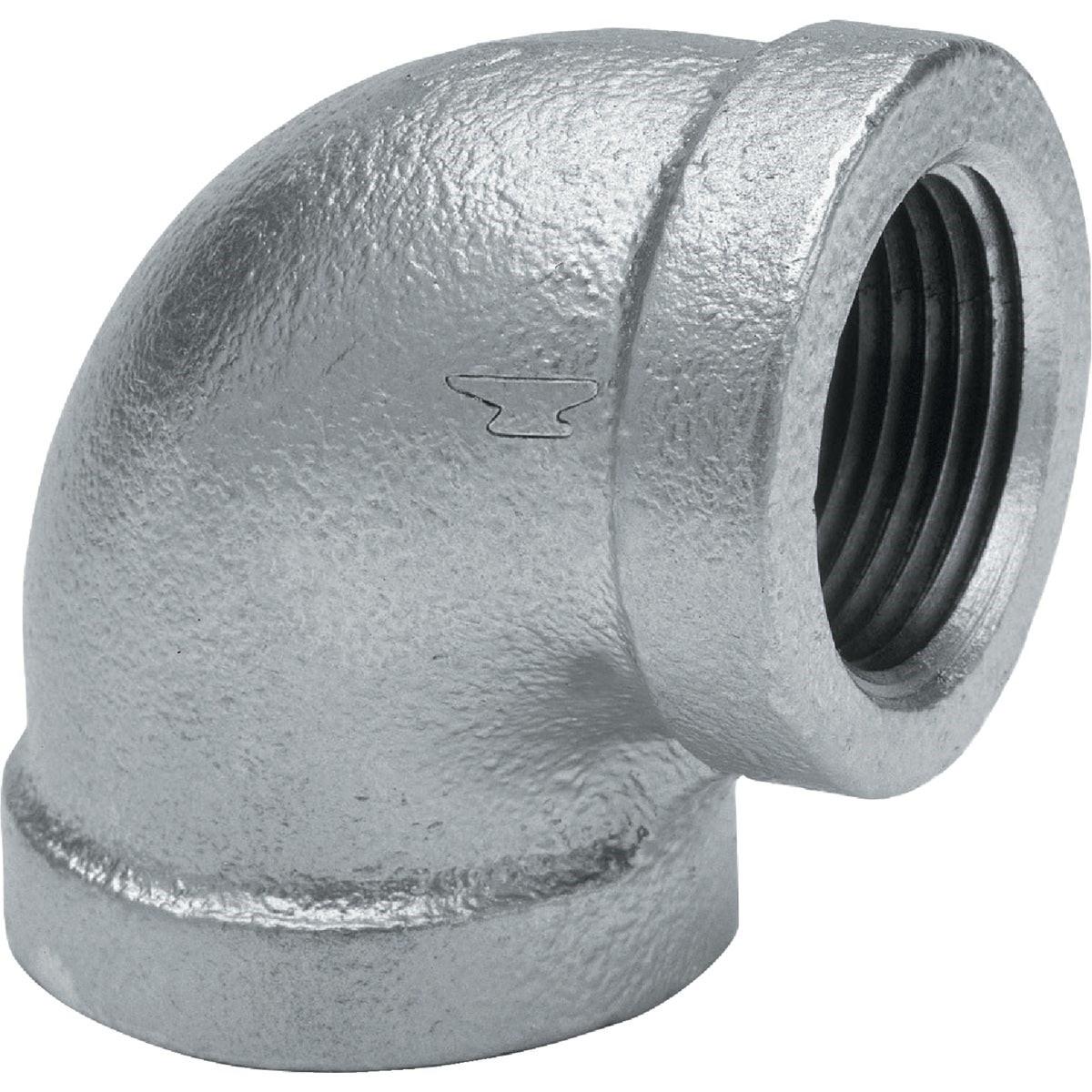

The ASC ENGINEERED SOLUTIONS 8700124004 is a 1/8-inch galvanized malleable iron 90-degree elbow, also known as a quarter bend, used to change pipe direction in threaded piping systems. Manufactured to ASTM A-197 standards for chemical and physical properties, this flat banded fitting meets Federal Specification WW-P-521F and is dimensioned to ANSI B-16.3 with pipe threads conforming to ANSI B-2.1. The galvanized finish provides corrosion resistance in general plumbing, HVAC piping, and light industrial applications. Licensed plumbers and pipefitters install this fitting in low-pressure threaded iron pipe systems where a sharp 90-degree directional change is required.

This fitting is suited for residential and light commercial piping systems using 1/8-inch NPT threaded pipe. Typical applications include gas distribution branch lines, water supply piping, compressed air lines, and steam or condensate systems operating within standard pressure ratings for malleable iron fittings. The flat banded body style is the industry-standard configuration for this fitting class and is compatible with standard NPT-threaded pipe and nipples of the same nominal size.

Key Features

• Malleable iron construction to ASTM A-197 for reliable mechanical performance
• Galvanized finish for corrosion resistance in general-service environments
• 90-degree elbow geometry for sharp directional changes in threaded piping runs
• Flat banded body style meets standard malleable iron fitting dimensions per ANSI B-16.3
• NPT pipe threads conform to ANSI B-2.1 for leak-tight threaded connections
• Meets Federal Specification WW-P-521F for government and commercial procurement requirements

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1/8-inch NPT threaded iron pipe systems in plumbing, HVAC, gas, and light industrial piping applications.

Installation Notes

Installation is performed by a licensed plumber or pipefitter. Shut off and depressurize the piping system before disassembly or installation of any threaded fitting. Apply an appropriate thread sealant or PTFE tape to male NPT threads before assembly and tighten to hand-tight plus wrench turns per standard trade practice. Do not overtighten malleable iron fittings, as the material is strong but not designed to withstand the same torque as steel pipe fittings.

Technical Specifications

• Pipe Size: 1/8 inch
• Fitting Angle: 90 degrees
• Material: Malleable Iron
• Finish: Galvanized
• Body Style: Flat Banded
• Thread Standard: ANSI B-2.1 NPT
• Dimensional Standard: ANSI B-16.3
• Material Standard: ASTM A-197
• Federal Specification: WW-P-521F
• Weight: 0.071 pounds
• Sold As: Each

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 8700124004
