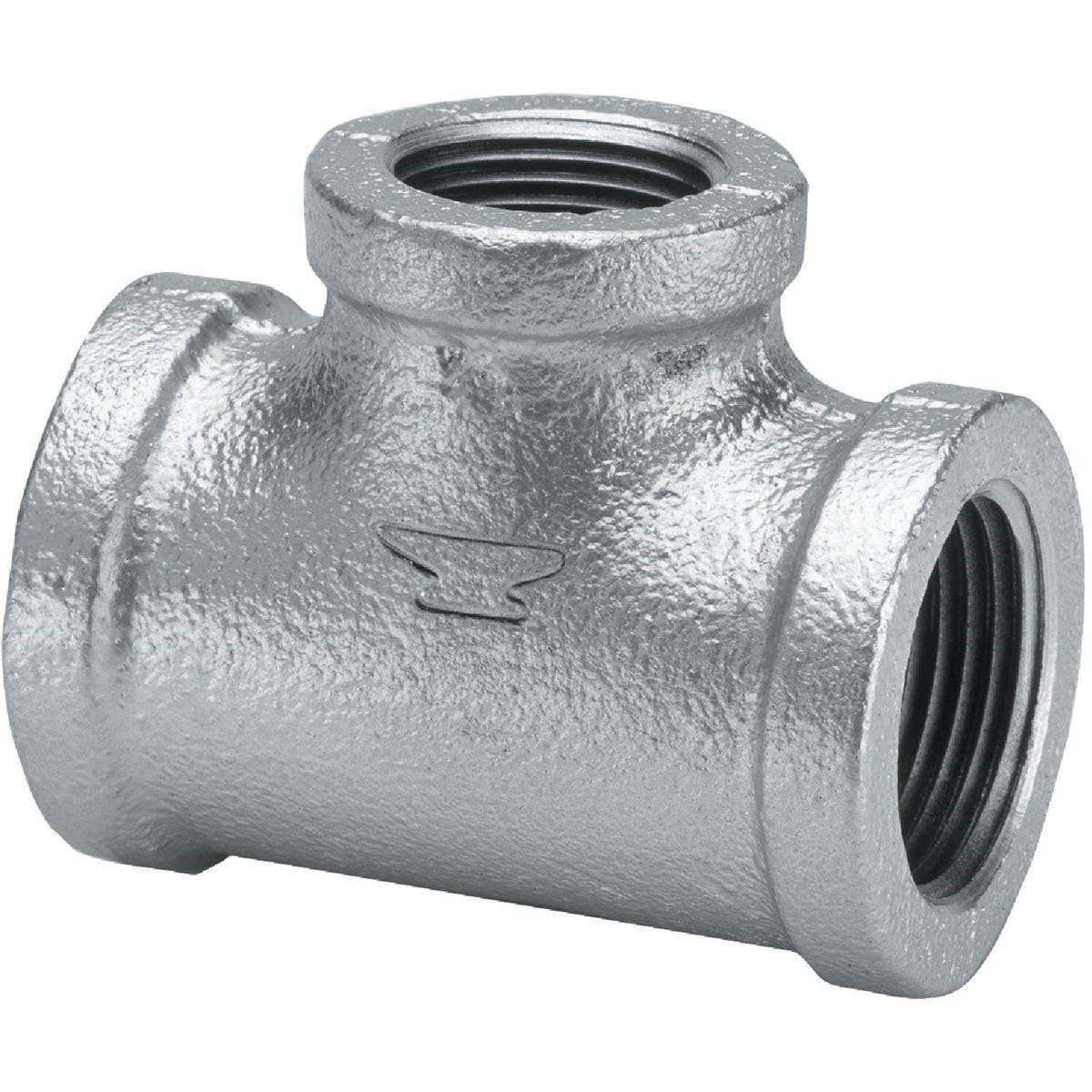

Asc Engineered Solutions 8700121000 Galvanized Tee 1 in

Product Description

The ASC Engineered Solutions 8700121000 is a 1-inch malleable iron galvanized tee designed for threaded pipe systems in commercial and residential plumbing, mechanical, and fire protection applications. The flat-banded design follows ANSI B-16.3 dimensional standards, with pipe threads conforming to ANSI B-2.1 and material properties meeting ASTM A-197. The galvanized finish provides corrosion resistance in exposed or damp environments. Licensed plumbers, pipefitters, and mechanical contractors install this fitting as part of threaded iron pipe assemblies where a branch connection is required.

This tee is suited for low-pressure threaded piping systems in a range of settings including building mechanical rooms, hydronic heating distribution, gas distribution headers, and general water service runs. It is manufactured to Federal Specification WW-P-521F, making it appropriate for use on projects requiring compliance with recognized government procurement standards. The fitting is sold individually and is compatible with standard 1-inch NPT threaded pipe and fittings.

Key Features

• Malleable iron construction meets ASTM A-197 chemical and physical property requirements
• Galvanized finish for corrosion resistance in damp or exposed conditions
• Flat-banded style for easy identification and handling in the field
• ANSI B-16.3 dimensional compliance ensures consistent fit with standard threaded fittings
• ANSI B-2.1 thread form for reliable, leak-resistant connections
• Meets Federal Specification WW-P-521F for government and institutional project use

Compatibility

Designed as an OEM-style replacement and standard service fitting for 1-inch NPT threaded malleable iron pipe systems.

Installation Notes

Installation is performed by licensed plumbers or pipefitters. Depressurize and drain the piping system fully before removing or installing any threaded fitting. Apply a listed pipe thread sealant or PTFE tape to male threads before assembly. Follow applicable code requirements including IPC and IFGC for pipe joint preparation and assembly torque practices.

Technical Specifications

• Material: Malleable Iron
• Finish: Galvanized
• Size: 1 inch
• Connection Type: NPT Threaded
• Style: Flat Banded
• Weight: 0.921 pounds
• Certifications: ASTM A-197, ANSI B-16.3, ANSI B-2.1, Federal Specification WW-P-521F
• Sold As: Each

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 8700121000
