Asc Engineered Solutions 810051409 Black Malleable Iron Tee

Product Description

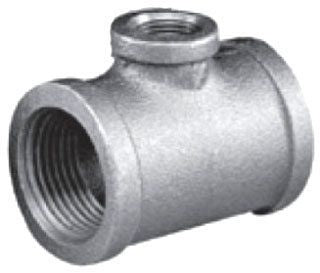

The ASC Engineered Solutions 810051409 is a black malleable iron reducing tee designed for threaded pipe systems. This fitting connects a 2-inch run with a 3/4-inch branch outlet, returning to 2 inches on the opposing run end. It is used in gas distribution, compressed air, and black iron pipe assemblies where a branch takeoff is required. The malleable iron construction provides impact resistance and durability under mechanical stress. The black coating offers corrosion resistance for dry or low-moisture environments. Installation is performed by licensed plumbers, pipefitters, or HVAC technicians working on threaded iron pipe systems.

This tee is suited for residential and light commercial applications involving black iron pipe runs. Typical uses include natural gas supply lines, propane distribution piping, and compressed air headers where a reduced branch connection is needed. The 2 in x 3/4 in x 2 in configuration allows a branch takeoff without reducing the main run diameter, maintaining flow capacity along the primary line.

Key Features

• Malleable iron construction resists impact and mechanical stress in threaded pipe systems
• Black coating provides corrosion resistance in dry and low-moisture environments
• 2 in x 3/4 in x 2 in reducing configuration supports branch takeoffs without restricting main run flow
• Threaded end connections compatible with standard NPT pipe threads
• Weighs 2 pounds per unit

Compatibility

Designed as an OEM-style replacement and standard-fit component for threaded black iron pipe systems using NPT connections in residential and commercial gas, air, and fluid distribution applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable codes including the IFGC and IPC. Shut off and depressurize the pipe system completely before disassembling or threading new fittings. Apply an appropriate pipe thread sealant or PTFE tape rated for the service medium to all threaded joints before assembly. Do not over-tighten fittings, as malleable iron threads can crack under excessive torque.

Technical Specifications

• Fitting Size: 2 inches x 3/4 inches x 2 inches
• Fitting Material: Malleable Iron
• Coating: Black
• Item Weight: 2 pounds
• Origin: Import

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 810051409
