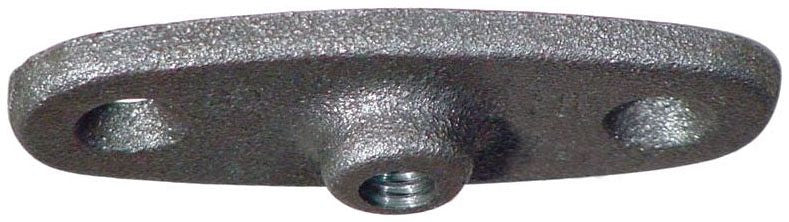

Asc Engineered Solutions 560317208 Wall Plate Flange 3/8 in

Product Description

The ASC Engineered Solutions 560317208 is a galvanized ceiling and wall plate flange designed for use with 3/8-inch threaded rod. This fitting provides a clean, finished anchor point where threaded rod meets a ceiling or wall surface, distributing load and covering the mounting hole. It is used in mechanical, plumbing, and HVAC suspension systems where rods are anchored to structural surfaces. Licensed trades and pipe hangers contractors install this type of hardware as part of rod-and-hanger assemblies that support pipe, conduit, duct, or equipment loads overhead or along walls.

This plate flange is suited for residential and commercial applications where 3/8-inch support rod is anchored to concrete, drywall, or structural framing. Common installations include suspended piping systems, HVAC ductwork supports, conduit hangers, and plumbing runs requiring overhead or wall-mounted rod support points. The galvanized finish makes it appropriate for environments where moderate corrosion resistance is required, such as mechanical rooms, utility spaces, and light industrial settings.

Key Features

• Galvanized finish provides corrosion resistance for mechanical and utility environments
• Sized for 3/8-inch threaded rod, a common diameter in light to medium support assemblies
• Functions as both a ceiling plate and wall plate flange for flexible installation orientation
• Covers mounting hole at the rod anchor point for a clean, finished appearance
• Lightweight at 0.16 pounds per unit for easy handling during overhead installation

Compatibility

Designed as an OEM-style replacement or new-installation component compatible with standard 3/8-inch threaded rod suspension and hanger systems used in mechanical, plumbing, and electrical support assemblies.

Installation Notes

Installation is typically performed by licensed plumbers, HVAC mechanics, or electricians as part of a rod-and-hanger support system. Power down or depressurize any adjacent systems before working in the area. Ensure the anchor substrate is rated for the intended load before fastening the plate to the ceiling or wall surface. Refer to applicable local mechanical codes and manufacturer load guidelines when sizing and spacing rod support assemblies.

Technical Specifications

• Size: 3/8 inches
• Finish: Galvanized
• Type: Wall Plate / Flange
• Weight: 0.16 pounds per unit

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 560317208
