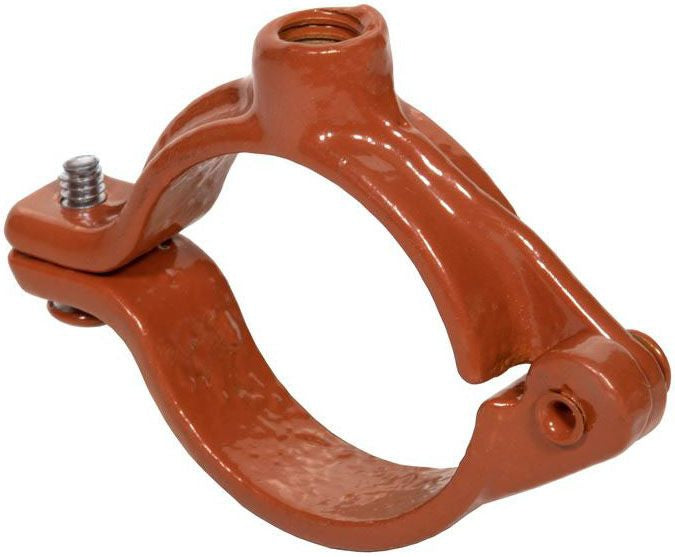

Asc Engineered Solutions 560018978 Copper Split Ring Hanger

Product Description

The ASC Engineered Solutions 560018978 is a 1-1/2 inch copper split ring hanger designed to support pipe runs from threaded rod in mechanical, plumbing, and HVAC piping systems. The split ring design allows the hanger to be installed around existing pipe without disassembling the line, and the 3/8 inch rod size fits standard all-thread rod commonly used in suspended piping applications. Constructed entirely from copper, this hanger is suited for copper pipe systems where galvanic compatibility and corrosion resistance are required. Plumbers and mechanical contractors install this type of fitting in both residential and commercial settings.

This hanger is used in suspended pipe installations where copper tubing requires support from overhead structure via threaded rod. Typical applications include domestic water supply, hydronic heating lines, and refrigerant piping where copper-to-copper contact is specified to prevent galvanic corrosion. The 1-1/2 inch size targets main distribution lines and larger branch runs in commercial plumbing and mechanical rooms, as well as residential systems with larger diameter copper tubing.

Key Features

• Copper construction ensures galvanic compatibility with copper pipe systems
• Split ring design allows installation over pipe without full disassembly
• Accepts 3/8 inch threaded rod for standard suspended piping applications
• Sized for 1-1/2 inch pipe, suitable for main distribution and larger branch lines
• Lightweight at 0.19 pounds per unit for easy handling during overhead work

Compatibility

Designed as an OEM-style replacement and new-installation hanger for 1-1/2 inch copper pipe systems using 3/8 inch threaded rod suspension.

Installation Notes

This fitting is installed by licensed plumbers and mechanical contractors. Shut off the water supply and depressurize the line before working on existing pipe runs. Follow applicable IPC and local mechanical code requirements for pipe support spacing and rod sizing. Do not use copper hangers on steel or galvanized pipe, as direct contact between dissimilar metals can accelerate corrosion.

Technical Specifications

• Material: Copper
• Pipe Size: 1-1/2 inches
• Rod Size: 3/8 inches
• Type: Split Ring Hanger
• Weight: 0.19 pounds per unit

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 560018978
