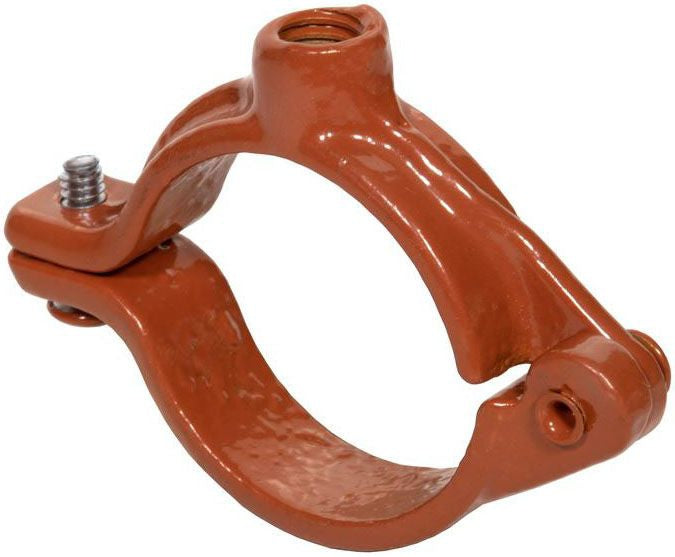

Asc Engineered Solutions 560018976 Copper Split Ring Hanger

Product Description

The ASC Engineered Solutions 560018976 is a copper split ring hanger designed to support pipe runs in plumbing, HVAC, and mechanical piping systems. Built for 1-1/4 inch pipe and sized for a 3/8 inch threaded rod, this hanger suspends pipe from overhead structure in a clean, secure loop. The split ring design allows the hanger to be installed around existing pipe without disassembling the run. At 0.13 pounds per unit, it is lightweight and easy to handle in overhead work. Licensed plumbers and pipefitters are the typical installers for this type of fitting.

This copper split ring hanger is suited for residential and light commercial mechanical rooms, plumbing rough-in, hydronic piping, and HVAC refrigerant or water line support. Copper construction makes it appropriate for copper pipe systems where dissimilar metal contact is a concern. The 3/8 inch rod size is a common threaded rod dimension in suspended pipe support assemblies, making this hanger compatible with standard strut and rod hanger configurations used across plumbing and mechanical trades.

Key Features

• Copper construction eliminates dissimilar metal contact on copper pipe systems
• Split ring design allows installation around existing pipe without line disassembly
• Sized for 1-1/4 inch pipe diameter
• Accepts 3/8 inch threaded suspension rod
• Lightweight at 0.13 pounds per unit for easy overhead handling

Compatibility

Designed as an OEM-style replacement and new-installation hanger for 1-1/4 inch copper pipe runs suspended from 3/8 inch threaded rod in plumbing and mechanical piping systems.

Installation Notes

Installation is typically performed by licensed plumbers or pipefitters following IPC and applicable local mechanical codes. Shut off and depressurize the pipe system before making any modifications to an existing run. Thread the hanger onto the 3/8 inch rod and close the split ring securely around the pipe before tightening. Do not overtighten in a way that deforms the copper pipe wall or restricts thermal expansion of the line.

Technical Specifications

• Material: Copper
• Pipe Size: 1-1/4 inches
• Rod Size: 3/8 inches
• Type: Split Ring Hanger
• Weight: 0.13 pounds per unit

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 560018976
