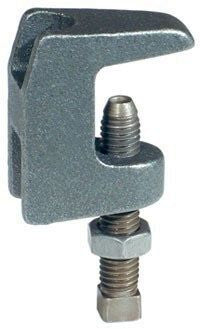

Asc Engineered Solutions 560009169 Beam Clamp 3/8 in

Product Description

The ASC Engineered Solutions 560009169 is a wide jaw wedge style C beam clamp designed for securing threaded rod, pipe hangers, and support assemblies to structural steel beams. The clamp features a wedge-action jaw that bites into the beam flange to hold position without welding or drilling. Built from steel, this 3/8 inch clamp is a standard component in mechanical, plumbing, and HVAC overhead support systems. It is installed by HVAC technicians, pipefitters, and plumbers working in commercial and industrial construction where beam attachment is required for pipe and duct support runs.

This clamp is suited for use in commercial and industrial settings where threaded rod suspension systems attach to wide-flange or I-beam structural members. The 3/8 inch size corresponds to the threaded rod size it accepts, making it a common choice for standard pipe hanger and support installations in multi-trade mechanical rooms, above-ceiling plenum spaces, and exposed structural areas. Installers working on HVAC duct support, plumbing hangers, or conduit support racks will encounter this clamp in typical suspended ceiling and overhead utility applications.

Key Features

• Wide jaw wedge style C design grips beam flange without welding or drilling
• Accepts 3/8 inch threaded rod for standard hanger and support assemblies
• Steel construction for strength and durability in overhead structural applications
• Lightweight at 0.41 pounds per unit for easy handling during overhead installation

Compatibility

Designed as an OEM-style replacement or new-installation beam clamp for 3/8 inch threaded rod support systems on structural steel beams in commercial and industrial mechanical applications.

Installation Notes

Installation is typically performed by licensed pipefitters, plumbers, or HVAC technicians following applicable building and mechanical codes. Ensure the beam flange is clean and free of debris before seating the clamp to allow the wedge jaw to grip properly. Verify that the clamp is fully engaged and the threaded rod is tightened to a secure load-bearing fit before suspending any piping, duct, or conduit weight. Always confirm that the selected clamp size matches the threaded rod diameter used in the support assembly.

Technical Specifications

• Type: Beam Clamp
• Style: Wide Jaw Wedge Style C
• Size: 3/8 inches
• Material: Steel
• Weight: 0.41 pounds per unit

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 560009169
