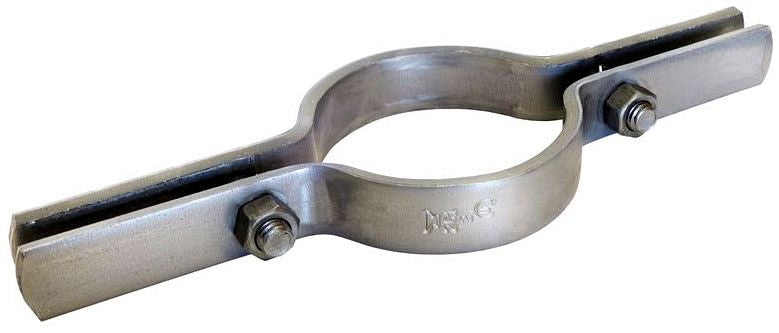

Asc Engineered Solutions 500361142 Riser Clamp 10 in

Product Description

The ASC Engineered Solutions 500361142 is a 10-inch galvanized steel riser clamp designed to support vertical pipe runs in commercial and industrial piping systems. This clamp grips IPS (Iron Pipe Size) pipe and transfers the load to a structural support point such as a beam, slab, or floor penetration. Riser clamps are a standard solution for anchoring vertical pipe so it does not slide under its own weight. At 10.75 pounds, this is a heavy-duty unit appropriate for large-diameter pipe installations where load capacity and corrosion resistance are primary concerns.

This riser clamp is suited for use in commercial plumbing, fire protection, and mechanical piping systems where vertical pipe must be anchored at each floor or support interval. The galvanized steel construction provides resistance to moisture and light corrosive conditions typical of interior mechanical rooms, pipe chases, and wet areas. It is sized for 10-inch IPS pipe and is installed by licensed plumbers and pipefitters working on vertical riser assemblies in multi-story buildings and industrial facilities.

Key Features

• Sized for 10-inch IPS pipe for a secure, load-bearing fit on standard iron pipe size vertical runs
• Galvanized steel construction resists corrosion in damp and interior mechanical environments
• Heavy-duty build at 10.75 pounds, appropriate for large-diameter pipe load support
• Clamp-style design transfers vertical pipe load to structural support surfaces
• Compatible with standard riser clamp installation methods used in commercial and industrial piping

Compatibility

Designed for use with 10-inch IPS pipe in vertical riser applications. Suitable for commercial plumbing, mechanical, and industrial piping systems requiring galvanized clamp-style pipe support.

Installation Notes

Riser clamps are installed by licensed plumbers or pipefitters and must be secured to a structural member capable of supporting the full load of the vertical pipe run above. Shut off the system and depressurize before making any modifications to existing pipe supports. Installation should comply with applicable local plumbing codes and ASME B31 piping standards for support spacing and load requirements. Do not use this clamp as the sole means of support on spans exceeding code-specified intervals for 10-inch pipe.

Technical Specifications

• Pipe Size: 10 inches IPS
• Material: Galvanized Steel
• Clamp Type: Riser Clamp
• Item Weight: 10.75 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 500361142
