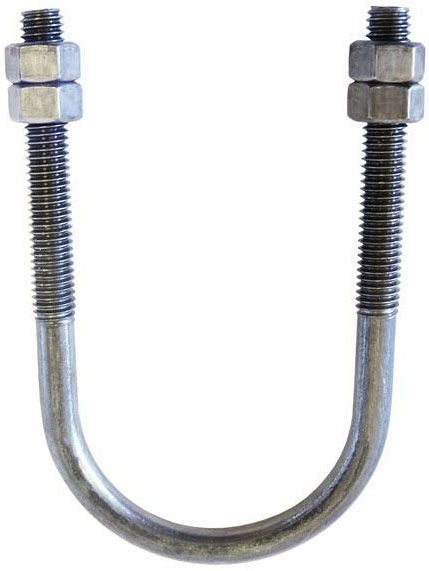

Asc Engineered Solutions 500320155 U Bolt 12 Inch Galvanized

Product Description

The ASC ENGINEERED SOLUTIONS 500320155 is a 12-inch galvanized U bolt with nuts, designed for pipe support and securing applications in mechanical, plumbing, and industrial installations. The galvanized finish provides corrosion resistance suited for both indoor and outdoor environments. Sized at 12 inches, this U bolt accommodates larger-diameter pipe runs and is supplied complete with nuts, eliminating the need for separate hardware. Licensed plumbers, pipefitters, and mechanical contractors install this type of fastener when anchoring pipe to structural supports, hangers, or strut channel systems.

This U bolt is appropriate for residential and commercial piping systems where a secure, corrosion-resistant pipe clamp is required. Typical applications include anchoring water supply lines, drain lines, gas piping, and mechanical system pipe runs to structural framing, unistrut, or concrete inserts. The 12-inch size is suited to larger nominal pipe diameters commonly found in commercial mechanical rooms, industrial facilities, and municipal utility installations.

Key Features

• 12-inch size accommodates larger pipe diameters in commercial and industrial pipe support layouts
• Galvanized finish resists corrosion in wet, humid, and outdoor-exposed environments
• Supplied with nuts for complete, ready-to-install pipe anchoring
• Heavy-duty construction at 6.13 pounds per unit reflects robust material stock

Compatibility

Designed as a standard U bolt pipe support fitting for 12-inch pipe applications in mechanical, plumbing, and industrial systems. Also referenced as 137G and B3188 in supplier cross-reference listings.

Installation Notes

Installation is typically performed by licensed plumbers, pipefitters, or mechanical contractors in accordance with applicable plumbing and mechanical codes such as the IPC or IFGC. Shut off fluid flow and depressurize the pipe section before installing or repositioning pipe support hardware. Ensure the U bolt is tightened evenly on both nut sides to distribute clamping load uniformly across the pipe. Do not overtighten on plastic or soft-walled pipe without appropriate protection sleeves or inserts.

Technical Specifications

• Size: 12 inches
• Type: U Bolt with Nuts
• Finish: Galvanized
• Weight: 6.13 pounds per unit

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 500320155
