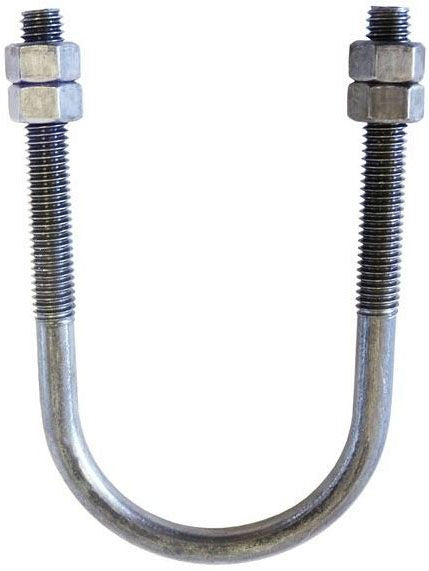

Asc Engineered Solutions 500320114 U-bolt with Nuts 5 in

Product Description

The ASC ENGINEERED SOLUTIONS 500320114 is a 5-inch galvanized U-bolt with nuts, designed for use in pipe hanging, support, and fastening applications across mechanical and plumbing systems. Weighing 1.01 pounds per unit, this U-bolt is fabricated to secure round pipe or conduit to structural supports. The galvanized finish provides corrosion resistance in wet, outdoor, and industrial environments. It ships complete with the mating nuts required for installation, making it a ready-to-use fastener for field or shop assembly. Licensed plumbers, pipefitters, and mechanical contractors commonly specify this type of hardware for both new construction and retrofit support work.

This U-bolt is suited for residential, commercial, and light industrial pipe support installations. It is used wherever a 5-inch pipe or conduit needs to be clamped to a strut, beam, or hanger rod. The galvanized construction makes it appropriate for indoor mechanical rooms, outdoor installations, and locations exposed to moisture or mild chemical environments. It is a standard fastener in HVAC, plumbing, and mechanical piping systems.

Key Features

• 5-inch nominal size for securing standard 5-inch pipe or conduit
• Galvanized finish for corrosion resistance in wet and outdoor environments
• Includes mating nuts for complete, ready-to-install assembly
• 1.01 pounds per unit, suitable for standard pipe support loads
• Compatible with strut, beam, and hanger rod mounting configurations

Compatibility

Designed as an OEM-style replacement or new-installation U-bolt for 5-inch pipe support applications in mechanical, plumbing, and HVAC piping systems.

Installation Notes

Installation is typically performed by licensed plumbers, pipefitters, or mechanical contractors. Shut off and depressurize the piping system before repositioning or replacing pipe support hardware. Tighten nuts evenly to avoid placing uneven load on the pipe wall. Consult applicable codes such as the IPC or IFGC for required pipe support spacing and fastener specifications.

Technical Specifications

• Size: 5 inches
• Type: U-Bolt with Nuts
• Finish: Galvanized
• Weight: 1.01 pounds per unit

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 500320114
