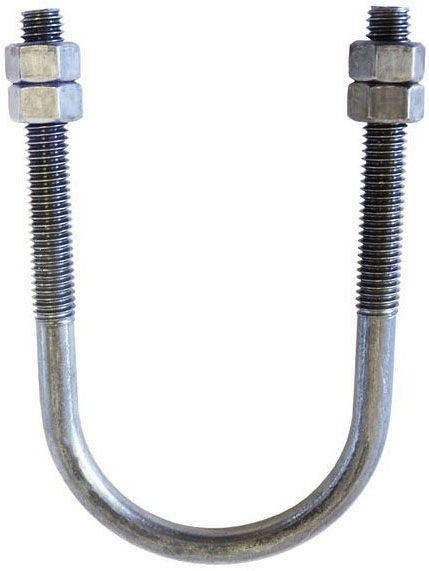

Asc Engineered Solutions 500320080 Galvanized U-bolt 3 in

Product Description

The ASC ENGINEERED SOLUTIONS 500320080 is a 3-inch galvanized U-bolt with nuts, designed for securing pipe, conduit, and similar round stock to structural supports. The galvanized finish provides corrosion resistance in wet or outdoor environments. Nuts are included, allowing for straightforward installation without sourcing additional hardware. This type of fastener is a standard component in plumbing, mechanical piping, HVAC, and electrical support systems, installed by plumbers, pipefitters, electricians, and mechanical contractors working on both new construction and retrofit projects.

This 3-inch U-bolt is suited for use in pipe hangers and support assemblies where a round pipe or conduit must be secured to a beam, strut, or threaded rod. The galvanized construction makes it appropriate for indoor mechanical rooms, crawlspaces, and exposed exterior applications where moisture exposure is a concern. It is commonly used in residential and light commercial mechanical systems as part of a compliant pipe support layout.

Key Features

• 3-inch nominal size for use with standard 3-inch pipe or conduit
• Galvanized finish for corrosion resistance in damp or outdoor environments
• Includes nuts for complete, ready-to-install assembly
• Standard U-bolt profile compatible with typical pipe support hardware
• Lightweight at 0.78 pounds per unit for easy handling on the job

Compatibility

Designed as a standard-style replacement or new-installation U-bolt for 3-inch pipe support applications in mechanical, plumbing, and electrical systems.

Installation Notes

Installation is performed by licensed plumbers, pipefitters, or electricians depending on the application. Power down or de-energize any nearby systems before working in tight mechanical spaces. Follow applicable codes such as the IPC or NEC for pipe and conduit support spacing requirements. Do not overtighten nuts, as excessive torque can deform the pipe or fitting.

Technical Specifications

• Size: 3 inches
• Type: U-Bolt with Nuts
• Finish: Galvanized
• Weight: 0.78 pounds per unit

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 500320080
