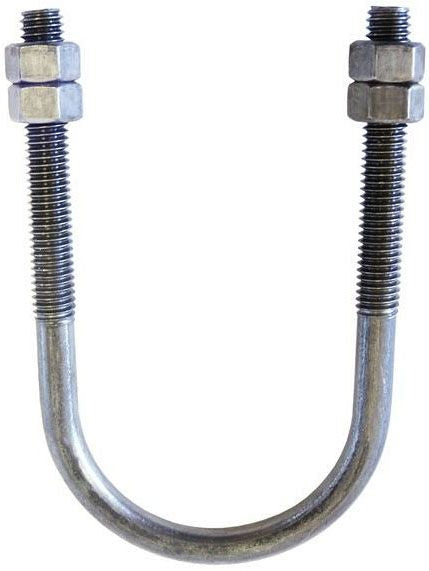

Asc Engineered Solutions 500320049 Galvanized U-bolt 1-1/4 in

Product Description

The ASC Engineered Solutions 500320049 is a galvanized U-bolt with nuts designed for securing pipe to structural supports in plumbing, HVAC, and mechanical piping systems. Sized for 1-1/4 inch pipe, this U-bolt provides a firm, corrosion-resistant hold on pipe runs where long-term durability is required. The galvanized finish helps resist rust in damp or exposed environments. Nuts are included, allowing for immediate installation without sourcing separate hardware. This type of fastener is a standard component used by plumbers, pipefitters, and HVAC mechanics on both new construction and retrofit work.

This U-bolt is suited for residential and light commercial applications where 1-1/4 inch pipe must be anchored to strut, beam, or structural framing. Common installation scenarios include domestic water piping, gas piping support, and HVAC refrigerant or hydronic line sets routed along walls, ceilings, or mechanical room framing. The galvanized coating makes it appropriate for indoor applications with moderate moisture exposure.

Key Features

• Sized for 1-1/4 inch pipe for a secure, properly fitted grip
• Galvanized finish provides corrosion resistance in damp environments
• Includes nuts for complete, ready-to-install hardware assembly
• Lightweight at 0.28 pounds per unit for easy handling and bulk installation
• Standard U-bolt geometry compatible with typical strut and structural support systems

Compatibility

Designed as a standard OEM-style pipe support fastener for 1-1/4 inch pipe in plumbing, HVAC, and mechanical piping installations.

Installation Notes

Installation is typically performed by licensed plumbers, pipefitters, or HVAC mechanics. Shut off and depressurize the pipe system before repositioning or securing pipe runs. Follow applicable codes such as the IPC or IFGC for required pipe support spacing. Tighten nuts evenly to seat the U-bolt squarely against the pipe without over-stressing the fitting.

Technical Specifications

• Pipe Size: 1-1/4 inches
• Type: U-Bolt with Nuts
• Finish: Galvanized
• Weight: 0.28 pounds per unit

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 500320049
