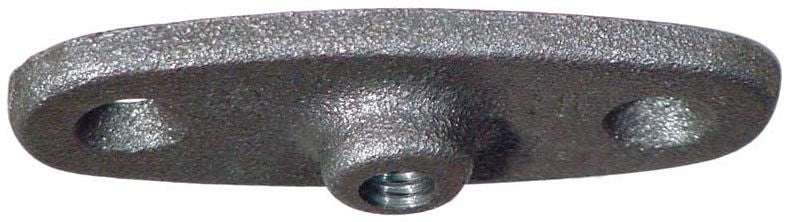

Asc Engineered Solutions 500317219 Rod Wall Plate 1/2 Inch

Product Description

The ASC ENGINEERED SOLUTIONS 500317219 is a galvanized ceiling and wall plate flange designed for 1/2 inch threaded rod applications in mechanical and structural support systems. This hardware fitting provides a secure mounting surface where threaded rod meets a ceiling or wall substrate, distributing load and creating a clean termination point. Licensed plumbers, pipefitters, and mechanical contractors install this type of plate as part of hanger and support assemblies for piping, conduit, ductwork, and related trade infrastructure. The galvanized finish provides corrosion resistance suitable for typical indoor and moderate-exposure environments.

This plate flange is used in residential and commercial construction wherever 1/2 inch rod support systems are specified. Common applications include pipe hanger assemblies, mechanical room support structures, and ceiling-mounted equipment support runs. It seats against the ceiling or wall surface and accepts 1/2 inch threaded rod, allowing the installer to anchor the rod at a fixed structural point before running hangers below.

Key Features

• Galvanized finish for corrosion resistance in standard indoor and light-exposure applications
• Designed for 1/2 inch threaded rod, a common size in commercial and residential hanger systems
• Functions as both a ceiling plate and wall plate, offering installation flexibility
• Lightweight at 0.16 pounds per unit, simplifying overhead installation

Compatibility

Designed as an OEM-style replacement or new-installation fitting for standard 1/2 inch threaded rod hanger and support assemblies used in mechanical, plumbing, and electrical support systems.

Installation Notes

Installation is typically performed by licensed plumbers, pipefitters, or mechanical contractors following applicable building and mechanical codes. Before installation, ensure the mounting substrate is structurally sound and capable of supporting the intended rod and load. The plate should be fastened securely to the ceiling or wall surface before threading rod through and applying hanger loads. Follow local code requirements for hanger spacing and support intervals when integrating this fitting into a full support assembly.

Technical Specifications

• Size: 1/2 inch
• Finish: Galvanized
• Type: Wall Plate / Ceiling Plate Flange
• Weight: 0.16 pounds per unit

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 500317219
