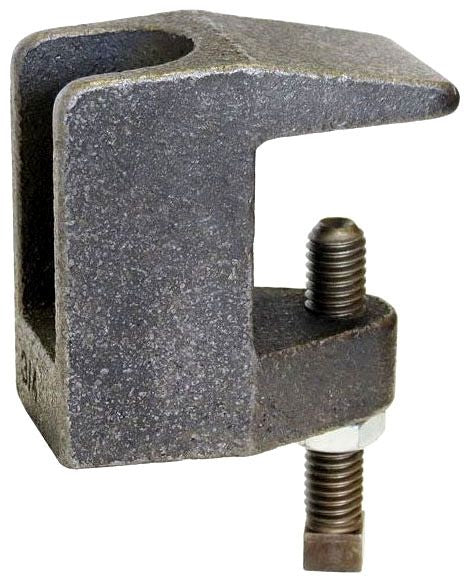

Asc Engineered Solutions 500009246 Beam Clamp 3/4 in

Product Description

The ASC Engineered Solutions 500009246 is a wide jaw wedge style C beam clamp designed for secure pipe and conduit support on structural steel beams. Built from steel with a black finish, this clamp provides a reliable mechanical attachment point in commercial and industrial installations where beam-mounted hangers are required. The 3/4 inch size suits common pipe and rod hanger applications, and the wedge-style jaw design allows the clamp to seat firmly against beam flanges without the need for drilling or welding.

This beam clamp is used in commercial plumbing, mechanical, and electrical installations where piping, conduit, or threaded rod must be suspended from I-beams or wide-flange structural members. It is suited for both new construction and retrofit work in ceiling plenum and overhead service spaces. Contractors and tradespeople in plumbing, HVAC, and electrical disciplines commonly use this style of clamp when attaching hanger assemblies to structural steel.

Key Features

• Wide jaw wedge style C design allows secure attachment to beam flanges without drilling or welding
• Steel construction provides strength and durability in overhead support applications
• Black finish for corrosion resistance in typical indoor commercial environments
• 3/4 inch size compatible with standard threaded rod and pipe hanger hardware
• Lightweight at 0.78 pounds per unit, keeping overhead assembly manageable

Compatibility

Designed as an OEM-style replacement and standard-fit beam clamp for use with 3/4 inch threaded rod or pipe hanger assemblies on structural steel I-beams and wide-flange members in commercial and industrial settings.

Installation Notes

Installation is typically performed by licensed plumbers, pipefitters, electricians, or mechanical contractors following applicable codes such as the IPC, IMC, or NEC. Ensure the beam flange dimensions are within the clamp jaw capacity before loading. Do not exceed the rated load for the clamp or the connected hanger rod. Follow OSHA overhead work safety practices and confirm all hanger assemblies are secure before releasing the load.

Technical Specifications

• Type: Beam Clamp
• Style: Wide Jaw Wedge Style C
• Size: 3/4 inches
• Material: Steel
• Finish: Black
• Weight: 0.78 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 500009246
