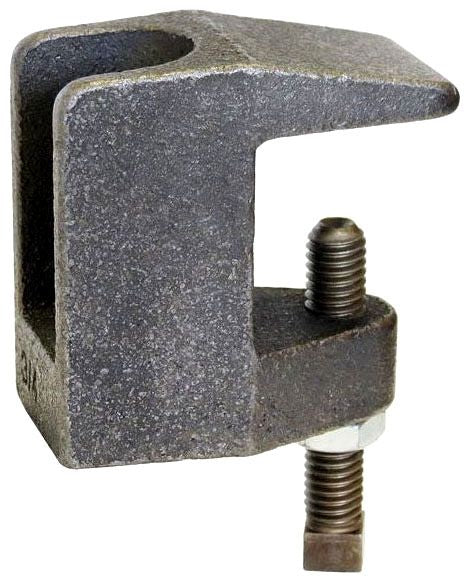

Asc Engineered Solutions 500009238 Beam Clamp 5/8 in

Product Description

The ASC ENGINEERED SOLUTIONS 500009238 is a wide jaw wedge style C beam clamp designed for securing pipe, conduit, rod, or strut systems to structural steel beams. The clamp features a wedge-action design that locks onto beam flanges without the need for drilling or welding. Built from steel, it provides a rigid, load-bearing connection in mechanical, electrical, and plumbing installations. At 0.55 pounds, it is compact and easy to handle in tight overhead spaces. The 5/8 inch size fits a standard range of beam flange thicknesses encountered in commercial and industrial construction.

This beam clamp is suited for use in commercial buildings, industrial facilities, and mechanical rooms where pipe runs, conduit, or threaded rod must be suspended from structural steel. Licensed plumbers, pipefitters, electricians, and HVAC contractors commonly specify this style of clamp when attaching hangers or supports to I-beams and wide-flange sections without altering the structural member. It is a standard component in overhead support systems for hydronic piping, refrigerant lines, conduit runs, and ductwork support rods.

Key Features

• Wide jaw wedge style C design clamps onto beam flanges without drilling or welding
• Steel construction for durable load-bearing performance
• 5/8 inch size fits standard beam flange thicknesses
• Lightweight at 0.55 pounds for easy overhead installation
• Compatible with threaded rod and standard hanger assemblies

Compatibility

Designed as an OEM-style replacement and standard-fit component for use with structural steel beam flanges in commercial and industrial pipe and conduit support systems.

Installation Notes

Installation is typically performed by licensed pipefitters, plumbers, or electricians working on overhead support systems. Ensure the beam flange is within the clamp jaw capacity before tightening the wedge. Always de-energize or depressurize any adjacent system before working in the support pathway. Installations in commercial buildings should comply with applicable local mechanical and building codes.

Technical Specifications

• Size: 5/8 inches
• Material: Steel
• Type: Beam Clamp
• Style: Wide Jaw Wedge Style C
• Item Weight: 0.55 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 500009238
