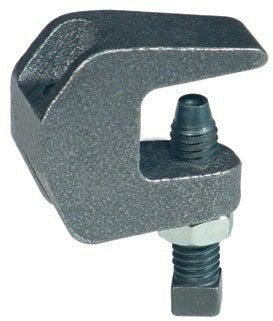

Asc Engineered Solutions 500009097 C Beam Clamp 3/8 in

Product Description

The ASC ENGINEERED SOLUTIONS 500009097 is a galvanized wedge style C beam clamp designed for securing threaded rod, pipe hangers, and support assemblies to structural steel beams. Built from steel with a galvanized finish, this clamp resists corrosion in both interior and exposed mechanical room environments. The 3/8 inch size accommodates standard threaded rod and hanger applications common in HVAC, plumbing, and electrical support work. Its wedge-style locking mechanism provides a firm, tool-assisted grip on beam flanges without welding or drilling into the structural member.

This beam clamp is used in commercial and industrial construction where pipe hangers or threaded support rods must attach to I-beams, H-beams, or channel iron. It is a standard component in overhead mechanical, electrical, and plumbing rough-in work. Contractors and journeymen in HVAC, plumbing, and electrical trades install these clamps during framing and rough-in phases before ceiling systems are closed in.

Key Features

• Wedge-style locking design secures to beam flanges without drilling or welding
• Galvanized steel construction for corrosion resistance in mechanical and utility spaces
• 3/8 inch size fits standard threaded rod for pipe and conduit hanger assemblies
• Compact C-profile allows installation in tight flange clearances
• Reusable and adjustable during rough-in before final torque

Compatibility

Designed as an OEM-style replacement and standard-use beam clamp for 3/8 inch threaded rod hanger applications on structural steel beams in commercial mechanical, plumbing, and electrical installations.

Installation Notes

Installation is typically performed by licensed plumbers, HVAC mechanics, or electricians working on overhead support systems. Before installing or adjusting beam clamps on live support assemblies, relieve any load on the hanger rod and verify the beam flange is within the clamp's rated grip range. Follow applicable codes including NFPA 13, IMC, and IPC for supported system spacing and hanger requirements. Use appropriate hand tools to seat the wedge fully against the beam flange before loading the threaded rod.

Technical Specifications

• Type: Wedge Style C Beam Clamp
• Size: 3/8 inches
• Material: Steel (Galvanized)
• Item Weight: 0.29 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 500009097
