ASC Engineered Solutions 4381005420 1 300 316/L RF SO FLG

Product Description

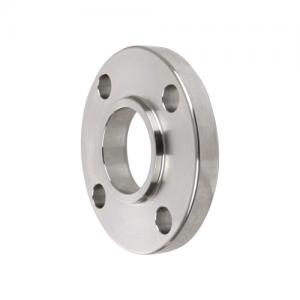

The ASC Engineered Solutions Slip-On Flange with MPN 4381005420 is a forged stainless steel fitting designed for effective piping applications. The flange features a raised face which allows a tight seal with the corresponding pipe or fitting. Its nominal size is one inch, making it suitable for a variety of plumbing and industrial systems.

• Material: Forged 316/316L Stainless Steel
• Pressure Class: 300 lb
• Series: S1036SO

Product Highlights

This flange is ideal for use in high-pressure applications. The raised face design allows for better sealing in systems requiring precise fit and durability. It is suitable for various piping configurations and is compliant with ASME standards.

Product Information

Standard Information

• Manufacturer: ASC Engineered Solutions
• Nominal Size: 1 in

Technical Specifications

• Bolt Circle Diameter: 3-1/2 in
• Bolt Hole Size: 3/4 in
• Hub Diameter: 2.12 in
• Inside Diameter: 1.36 in
• Length Through Hub: 1.06 in
• Outside Diameter: 4.88 in
• Thickness: 0.69 in
• Number of Bolt Holes: 4
