ASC Engineered Solutions 4381003070 3 150 316/L S40 RF WN FLG

Product Description

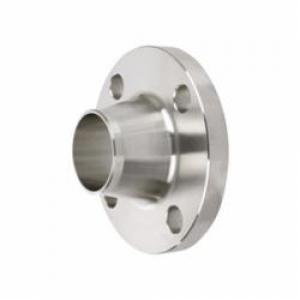

The ASC Engineered Solutions Weld Neck Flange, MPN 4381003070, is a durable connection component made from forged 316/316L stainless steel. It is designed for use in various piping applications requiring a secure and robust joint. Ideal for use in systems working under pressure, this flange is suitable for industrial and commercial piping systems.

• Nominal size of three inches with a raised face design.
• Compatible with SCH 40/STD bore specifications.
• Includes four bolt holes for easy installation.

Product Highlights

This flange meets ANSI specifications and is designed to ensure a tight seal in your pipeline installations.

Product Information

Standard Information

• Manufacturer: ASC Engineered Solutions
• Material: Forged 316/316L Stainless Steel

Technical Specifications

• Nominal Size: 3 in
• Inside Diameter: 3.07 in
• Outside Diameter: 7-1/2 in
• Thickness: 0.94 in
• Hub Diameter: 4-1/4 in
• Length Through Hub: 2-3/4 in
• Bolt Circle Diameter: 6 in
• Bolt Hole Size: 3/4 in
• Number of Bolt Holes: 4
• Pressure Class: 150 lb
• Series: S1016WN4
• Bore Size: SCH 40/STD
