ASC Engineered Solutions 4381003030 1 150 316/L S40 RF WN FLG

Product Description

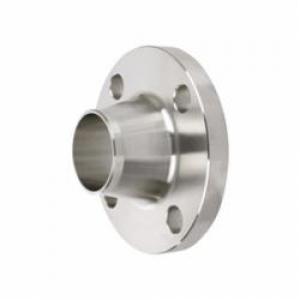

The ASC Engineered Solutions 4381003030 is a weld neck flange designed for high-performance applications. This product has a nominal size of one inch and is made from forged 316/316L stainless steel, ideal for various piping systems.

• Raised face design for improved sealing
• Compatible with ANSI and ASME standards
• Constructed with 150 lb pressure class

Product Highlights

The flange features a robust structure, a thick wall design, and a large bolt circle diameter for secure installation.

Product Information

Standard Information

• Manufacturer: ASC Engineered Solutions
• Material: Forged 316/316L Stainless Steel

Technical Specifications

• Nominal Size: 1 in
• Inside Diameter: 1.05 in
• Outside Diameter: 4-1/4 in
• Hub Diameter: 1.94 in
• Thickness: 0.56 in
• Bolt Circle Diameter: 3.12 in
• Bolt Hole Size: 0.62 in
• Length Through Hub: 2.19 in
• Bore Size: SCH 40/STD
• Number of Bolt Holes: 4
• Pressure Class: 150 lb
• Series: S1016WN4
