ASC Engineered Solutions 4381003010 1/2 150 316/L S40 RF WN FLG

Product Description

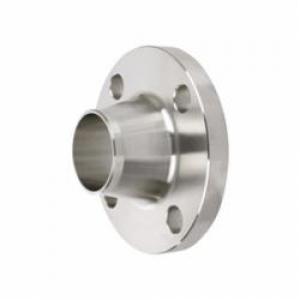

The ASC Engineered Solutions 4381003010 is a weld neck flange designed for reliable piping applications. It features a nominal size of one half inch, suitable for various industrial and plumbing uses.

• Type: Raised Face
• Material: Forged 316/316L Stainless Steel
• Pressure Class: 150 lb

Product Highlights

This flange is essential for connecting pipes in systems that require durability and resistance to corrosion.

Product Information

Standard Information

• Manufacturer: ASC Engineered Solutions
• Model Series: S1016WN4

Technical Specifications

• Bolt Circle Diameter: 2.38 in
• Bolt Hole Size: 0.62 in
• Bore Size: SCH 40/STD
• Hub Diameter: 1.19 in
• Inside Diameter: 0.62 in
• Length Through Hub: 1.88 in
• Nominal Size: 1/2 in
• Number of Bolt Holes: 4
• Outside Diameter: 3-1/2 in
• Thickness: 0.44 in
