ASC Engineered Solutions 4381002660 1-1/4 150 316/L RF THRD FLG

Product Description

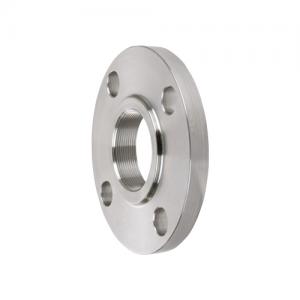

The ASC Engineered Solutions flange, MPN 4381002660, is a raised face flange made from forged 316L stainless steel. It features a nominal size of one and one-fourth inches, with a thickness of zero point six two inches. The flange has a bolt circle diameter of three and one-half inches and includes four bolt holes with a bolt hole size of zero point six two inches. This product is designed for thread connections and is suitable for applications requiring a pressure class of one hundred fifty pounds.

• Material: Forged 316L stainless steel
• Nominal Size: 1-1/4 inches
• Pressure Class: 150 lb

Product Highlights

The flange is appropriate for various piping systems, ensuring secure connections under high pressure.

Product Information

Standard Information

• Series: S1016TH
• Type: Raised Face

Technical Specifications

• Bolt Circle Diameter: 3-1/2 inches
• Bolt Hole Size: 0.62 inches
• Connection Type: Thread
• Hub Diameter: 2.31 inches
• Length Through Hub: 0.81 inches
• Number of Bolt Holes: 4
• Outside Diameter: 4.62 inches
• Thickness: 0.62 inches
