ASC Engineered Solutions 4381002640 3/4 150 316/L RF THRD FLG

Product Description

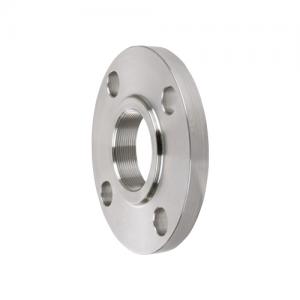

The ASC Engineered Solutions 4381002640 is a raised face flange designed for various piping applications. This flange is made from forged 316L stainless steel and is suitable for high-pressure environments. It features a nominal size of three-fourths inches and is compatible with threaded connections. The flange includes four bolt holes for secure attachment.

• Material: Forged 316L stainless steel
• Pressure rating: 150 lb
• Flange diameter: three point eight eight inches

Product Highlights

The ASC Engineered Solutions flange is effective for seamless integration into piping systems. Its robust construction ensures durability even under demanding conditions.

Product Information

Standard Information

• Manufacturer: ASC Engineered Solutions
• Type: Raised Face

Technical Specifications

• Nominal Size: three-fourths inches
• Thickness: one-half inches
• Hub Diameter: one and one-half inches
• Outside Diameter: three point eight eight inches
• Bolt Circle Diameter: two and three-fourths inches
• Bolt Hole Size: zero point sixty-two inches
• Length Through Hub: zero point sixty-two inches
• Connection Type: Thread
• Number of Bolt Holes: four
• Pressure Class: 150 lb
• Series: S1016TH
