ASC Engineered Solutions 4381002630 1/2 150 316/L RF THRD FLG

Product Description

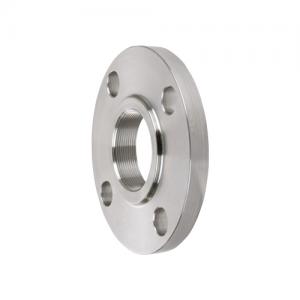

The ASC Engineered Solutions flange, MPN 4381002630, is a raised face flange designed for use in various piping systems. This flange is made of forged 316L stainless steel, making it durable and resistant to corrosion. It is suitable for a variety of applications in industries such as construction, plumbing, and HVAC.

• Nominal size of one-half inch
• 150 lb pressure class
• Thread connection type

Product Highlights

This flange is ideal for connecting pipes in a secure manner, ensuring leak-proof and reliable performance. The forged stainless steel material adds strength and longevity while maintaining a lightweight profile.

Product Information

Standard Information

• Manufacturer: ASC Engineered Solutions
• Series: S1016TH

Technical Specifications

• Bolt Circle Diameter: 2.38 inches
• Bolt Hole Size: 0.62 inches
• Connection Type: Thread
• Hub Diameter: 1.19 inches
• Length Through Hub: 0.62 inches
• Material: Forged 316L Stainless Steel
• Nominal Size: 1/2 inches
• Number of Bolt Holes: 4
• Outside Diameter: 3-1/2 inches
• Pressure Class: 150 lb
• Thickness: 0.44 inches
