ASC Engineered Solutions 4381002240 1-1/2 150 316/L RF SO FLG

Product Description

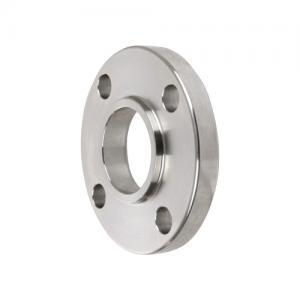

The ASC Engineered Solutions 4381002240 is a slip-on flange designed for various piping applications. This product features a raised face and is made from forged 316/316L stainless steel, ensuring durability. With a nominal size of one and one-half inches, it is suitable for high-pressure environments.

• Manufactured from forged 316/316L stainless steel
• Features a pressure class of 150 lbs
• Includes four bolt holes for secure installation

Product Highlights

This flange is ideal for connecting pipes while maintaining a high level of performance under pressure.

Product Information

Standard Information

• Manufacturer: ASC Engineered Solutions

Technical Specifications

• Nominal Size: 1-1/2 in
• Inside Diameter: 1.95 in
• Outside Diameter: 5 in
• Thickness: 0.69 in
• Hub Diameter: 3.06 in
• Length Through Hub: 0.88 in
• Bolt Circle Diameter: 4-3/4 in
• Bolt Hole Size: 3/4 in
• Number of Bolt Holes: 4
• Pressure Class: 150 lb
• Series: S1016SO
