ASC Engineered Solutions 4381002200 1/2 150 316/L RF SO FLG

Product Description

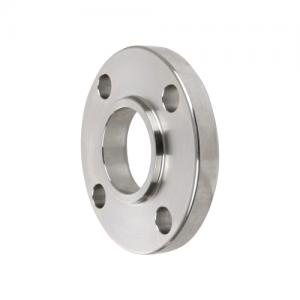

The ASC Engineered Solutions 4381002200 is a slip-on flange designed specifically for piping applications. This flange has a nominal size of 1/2 inch and is made from forged 316/316L stainless steel. It features a raised face and is suitable for pressure class 150 lb. With four bolt holes arranged on a bolt circle diameter of 2.38 inches, this flange is engineered to provide strong connections in various systems. Ideal for use in industries requiring durable and corrosion-resistant components, this product ensures reliable performance.

• Made from forged 316/316L stainless steel
• Raised face for effective sealing
• Compatible with standard piping dimensions

Product Highlights

This slip-on flange is designed for easy installation and maintenance while adhering to ASME standards.

Product Information

Standard Information

• Manufacturer: ASC Engineered Solutions
• Series: S1016SO

Technical Specifications

• Nominal Size: 1/2 inch
• Inside Diameter: 0.88 inch
• Outside Diameter: 3-1/2 inch
• Hub Diameter: 1.19 inch
• Thickness: 0.44 inch
• Length Through Hub: 0.62 inch
• Bolt Circle Diameter: 2.38 inch
• Number of Bolt Holes: 4
• Pressure Class: 150 lb
• Bolt Hole Size: 0.62 inch
