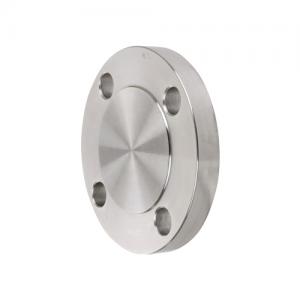

ASC Engineered Solutions 4381001830 1-1/4 150 316/L RF Blind Flg

Product Description

The ASC Engineered Solutions Blind Flange, model number 4381001830, is a raised face flange designed for reliable piping applications. It features a nominal size of one and one-quarter inches, a thickness of zero point sixty-two inches, and a pressure class of 150 lb.

• Forged from 316L stainless steel
• Includes four bolt holes
• Outside diameter of four point sixty-two inches

Product Highlights

This flange is ideal for systems where strong resistance to corrosion is needed due to the material properties of 316L stainless steel. It is suitable for a range of applications within the piping and fittings category.

Product Information

Standard Information

• Manufacturer: ASC Engineered Solutions
• Series: S1016BL

Technical Specifications

• Nominal Size: 1-1/4 in
• Thickness: 0.62 in
• Bolt Circle Diameter: 3-1/2 in
• Bolt Hole Size: 0.62 in
• Number of Bolt Holes: 4
• Outside Diameter: 4.62 in
• Pressure Class: 150 lb
• Material: Forged 316L Stainless Steel
