ASC Engineered Solutions 4381001810 3/4 150 316/L RF Blind Flg

Product Description

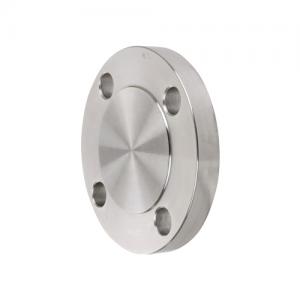

This ASC Engineered Solutions 4381001810 is a blind flange designed for piping applications. The flange features a nominal size of three-quarters of an inch and is made from forged 316L stainless steel. It has a raised face, which provides a stable sealing surface and is built to handle standard pressure levels.

• Made of forged 316L stainless steel
• Includes four bolt holes with a bolt circle diameter of two and three-quarters inches
• Ideal for high-pressure environments with a pressure class of 150 lb

Product Highlights

This blind flange is suitable for various piping needs and complies with ANSI and ASME specifications.

Product Information

Standard Information

• Manufacturer: ASC Engineered Solutions
• Series: S1016BL

Technical Specifications

• Nominal Size: 3/4 in
• Thickness: 1/2 in
• Outside Diameter: 3.88 in
• Number of Bolt Holes: 4
• Bolt Circle Diameter: 2-3/4 in
• Bolt Hole Size: 0.62 in
• Pressure Class: 150 lb
• Type: Raised Face
