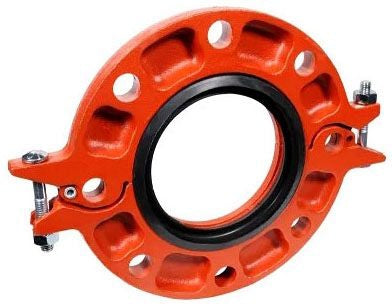

Asc Engineered Solutions 390210045 Grooved Flange 3 in

Product Description

The ASC Engineered Solutions 390210045 is a 3-inch 125 lb galvanized grooved flange designed to connect grooved-end pipe to standard 125 lb flat-face or raised-face flanged equipment and valves. Constructed from ductile iron with a galvanized finish, this fitting provides a secure, leak-resistant transition between grooved piping systems and flanged components. At 5.94 pounds, the fitting is built for durability in commercial and industrial piping applications. It is installed by licensed plumbers, pipefitters, and mechanical contractors working with grooved piping systems.

This galvanized grooved flange is suited for wet and dry piping systems including fire protection, HVAC hydronic distribution, and industrial process piping. It is used wherever a grooved pipe run must terminate or connect to a flanged valve, pump, or piece of equipment rated at 125 lb. The galvanized coating provides corrosion resistance appropriate for exposed or moderately humid installation environments.

Key Features

• 3-inch fitting size for standard grooved pipe connections
• 125 lb pressure class compatible with standard flanged components
• Ductile iron construction for high strength and impact resistance
• Galvanized finish for corrosion resistance in demanding environments
• Grooved-end design for fast, tool-free coupling assembly

Compatibility

Designed as an OEM-style grooved flange fitting for use with 3-inch grooved-end pipe in 125 lb flanged piping systems. Refer to system design documentation to confirm pressure rating and flange face type before installation.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber in accordance with applicable mechanical and plumbing codes. Depressurize and drain the piping system completely before removing or installing any grooved fitting. Inspect the pipe groove and gasket seat for damage or debris before assembly. Follow the coupling and flange bolt torque sequence per the fitting manufacturer installation guide.

Technical Specifications

• Fitting Size: 3 inches
• Pressure Class: 125 lb
• Fitting Material: Ductile Iron
• Finish: Galvanized
• Item Weight: 5.94 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 390210045
