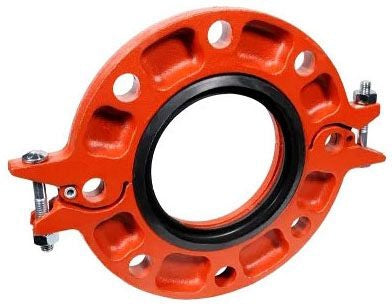

Asc Engineered Solutions 390201044 Grooved Flange 3 in

Product Description

The ASC Engineered Solutions 390201044 is a 125-class flange adapter designed for grooved-end piping systems. Manufactured from ductile iron, this fitting connects grooved pipe to flanged equipment or piping sections, allowing integration of grooved systems with traditional flanged valves, pumps, and components. At 3 inches in size and 6 pounds, it delivers the structural integrity required for commercial and industrial piping installations. Grooved pipe mechanics and end preparation are retained, while the flange face provides a standard bolted connection point. Licensed plumbers and pipefitters are the primary installers of this type of fitting.

This flange is suited for wet and dry piping systems in commercial mechanical rooms, industrial process piping, fire protection distribution, and HVAC hydronic systems where grooved piping terminates at flanged equipment. The 125-class rating aligns with standard low-pressure service conditions common in building mechanical systems. It is installed where a transition between grooved-end pipe and a flat-face or raised-face flanged connection is required.

Key Features

• Ductile iron construction provides strength and durability in mechanical piping applications
• 3-inch nominal size fits standard 3-inch grooved-end pipe
• 125-class flange rating for compatibility with low-pressure flanged system components
• Grooved pipe engagement eliminates welding at the transition point
• Weighs 6 pounds, consistent with full ductile iron flange construction

Compatibility

Designed as an OEM-style replacement or direct-use grooved-to-flange adapter for 3-inch grooved piping systems operating within 125-class pressure ratings.

Installation Notes

Installation is performed by licensed plumbers or pipefitters. Isolate and depressurize the piping system fully before disassembly or fitting installation. Verify that the mating flange class, bolt pattern, and gasket type are compatible before assembly. Follow applicable IPC and local mechanical code requirements for piping system pressure testing after installation.

Technical Specifications

• Fitting Size: 3 inches
• Flange Class: 125
• Material: Ductile Iron
• Item Weight: 6 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 390201044
