Asc Engineered Solutions 390173631 Grooved Saddle Tee 6x2 in

Product Description

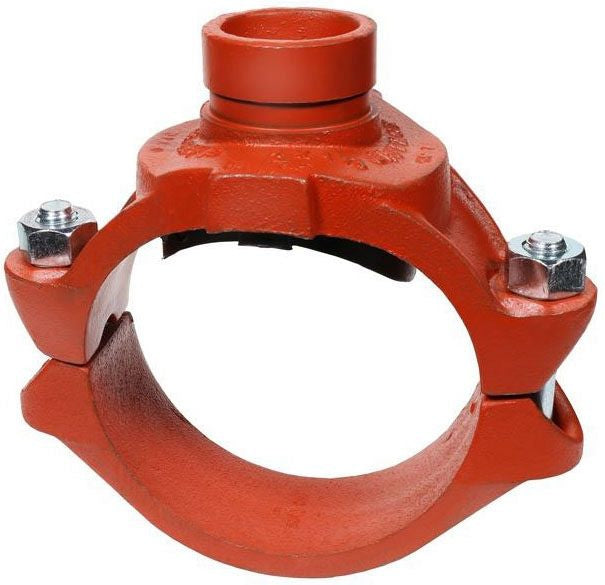

The ASC Engineered Solutions 390173631 is a painted grooved saddle tee fitting designed to create a branch outlet connection on an existing grooved piping system. Manufactured from ductile iron with a painted finish, this saddle tee fits a 6-inch run pipe with a 2-inch branch outlet. It is intended for use in mechanical piping systems where grooved-end joining methods are specified. Licensed pipefitters and mechanical contractors install this type of fitting as part of fire protection, HVAC hydronic, or industrial piping assemblies where branch connections must be made without cutting and welding.

This saddle tee is suited for commercial and industrial applications requiring a grooved branch takeoff from a main 6-inch line. Typical install scenarios include hydronic heating and cooling distribution systems, fire sprinkler mains, and process piping where grooved coupling systems are the standard joining method. The painted exterior provides basic corrosion resistance for interior mechanical room environments.

Key Features

• Ductile iron construction for strength and durability in pressurized piping systems
• 6-inch by 2-inch configuration creates a branch outlet on a grooved main line
• Painted finish provides surface protection for interior mechanical applications
• Grooved outlet end is compatible with standard grooved coupling systems
• Saddle design allows branch connection without full pipe replacement

Compatibility

Designed as an OEM-style grooved saddle tee fitting for use with standard grooved piping systems on 6-inch schedule pipe with a 2-inch grooved branch outlet.

Installation Notes

Installation should be performed by a licensed pipefitter or mechanical contractor familiar with grooved piping systems. Depressurize and isolate the piping system completely before beginning any fitting work. Ensure the grooved pipe ends are clean, free of burrs, and meet the groove dimensional specifications required by the coupling manufacturer. Follow applicable mechanical codes including NFPA 13 for fire protection systems or local mechanical codes for HVAC and process piping.

Technical Specifications

• Fitting Material: Ductile Iron
• Fitting Size: 6 inches x 2 inches
• Finish: Painted
• Item Weight: 7.13 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 390173631
