Asc Engineered Solutions 390060101 Fig 7305 Grooved Coupling 2 in

Product Description

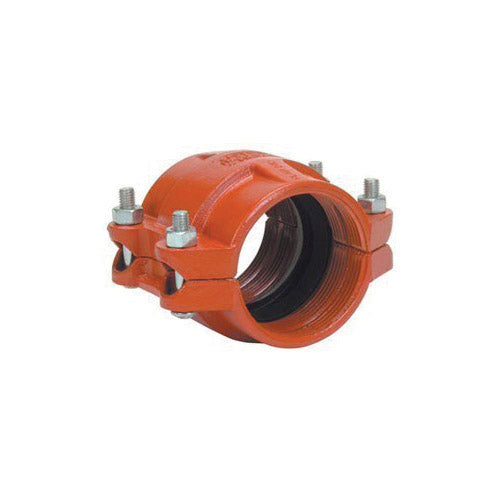

The ASC ENGINEERED SOLUTIONS 390060101 is a Gruvlok FIG 7305 grooved coupling designed for joining 2-inch nominal HDPE pipe in mechanical piping systems. Constructed from ductile iron with a rust-inhibiting orange paint finish, this coupling accommodates pipe with a 2.375-inch OD and spans 5.5 inches in length. The Grade E EPDM gasket provides a reliable seal across a wide service temperature range of -30 to 230 degrees F. Licensed plumbers and pipefitters working in commercial and industrial mechanical systems will find this coupling suitable for standard grooved-end installations.

The FIG 7305 coupling is specifically rated for use with HDPE pipes in grooved-end piping configurations. The grooved end style allows for fast mechanical assembly without hot work, making it a practical choice in occupied buildings or areas where open flame is restricted. The coupling ships complete with all hardware required for installation, including four zinc electroplated bolts, zinc electroplated heavy hex nuts, and zinc-coated hardened steel washers.

Key Features

• Ductile iron body with rust-inhibiting orange paint for corrosion resistance in mechanical piping environments
• EPDM gasket rated for service temperatures from -30 to 230 degrees F
• Grooved end style enables tool-based mechanical assembly without welding or soldering
• Designed specifically for HDPE pipe applications at 2-inch nominal size
• Includes four zinc electroplated bolts, heavy hex nuts, and zinc-coated hardened steel washers
• Compact hardware package ships ready for field installation

Compatibility

Designed for use with 2-inch nominal HDPE pipes using a grooved end connection style. Fits pipe with a 2.375-inch OD as specified for the FIG 7305 series.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber familiar with grooved mechanical coupling systems. Depressurize and drain the piping system completely before removing any existing coupling or fitting. Verify pipe end grooving meets the dimensional requirements for the FIG 7305 before assembly. Fasteners should be tightened evenly and in an alternating pattern to achieve uniform gasket seating.

Technical Specifications

• Nominal Size: 2 inches
• Pipe OD: 2.375 inches
• Coupling Width: 4.625 inches
• Length: 5.5 inches
• Temperature Rating: -30 to 230 degrees F
• Material: Ductile Iron
• Gasket Material: EPDM (Grade E Green)
• End Style: Grooved
• Finish: Rust Inhibiting Orange Painted
• Included Hardware: (4) 0.5 x 2.375 inch Zinc Electroplated Bolts, Zinc Electroplated Heavy Hex Nuts, Zinc Coated Hardened Steel Washers
• Application: HDPE Pipe
• Weight: 2.6 pounds
• Country of Origin: Taiwan

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 390060101
