Asc Engineered Solutions 390016962 Grooved Pipe Tee 10 in

Product Description

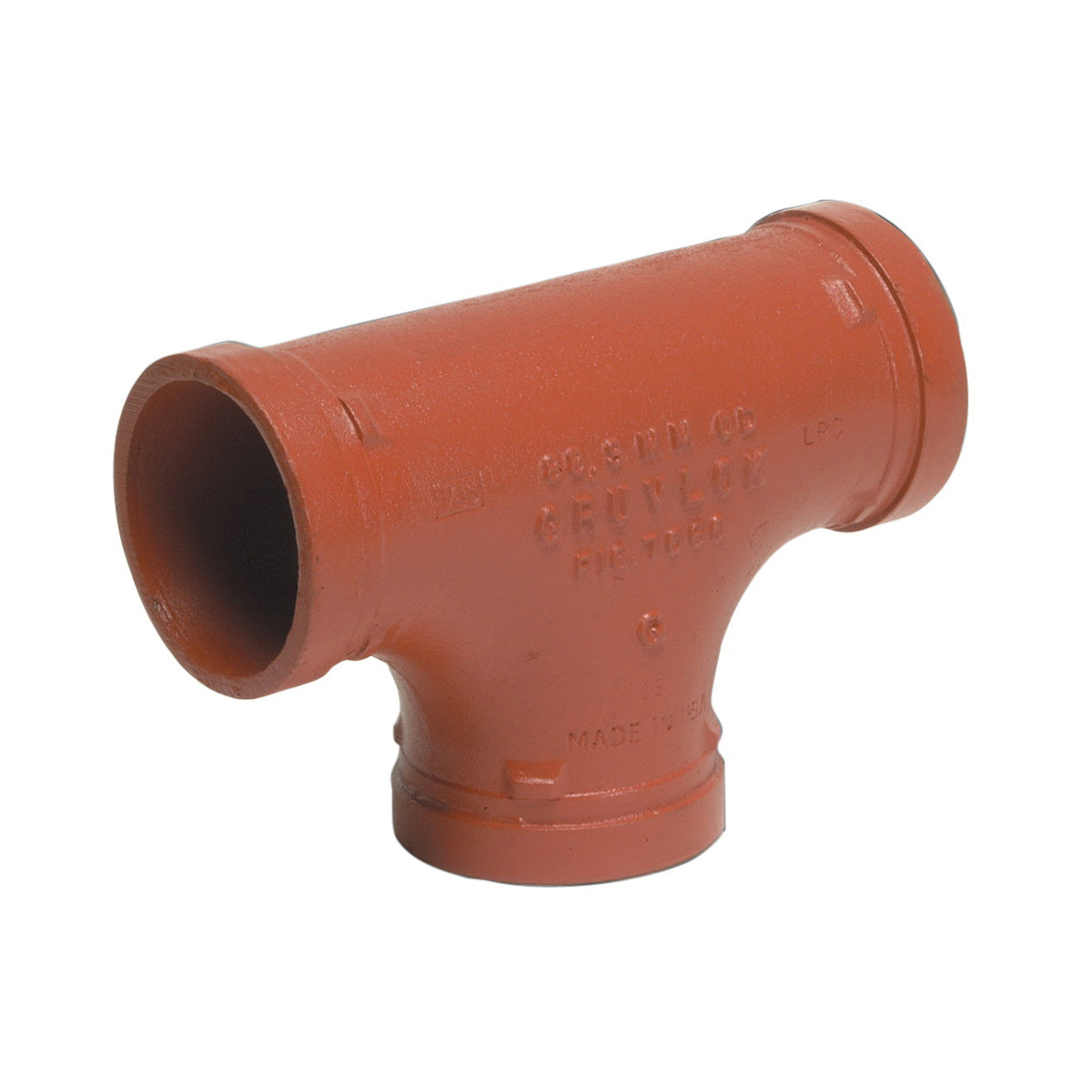

The ASC ENGINEERED SOLUTIONS 390016962 is a grooved-end pipe tee designed for use in mechanical piping systems where reliable flow distribution and branch connections are required. Part of the Gruvlok FIG 7060 series, this fitting is manufactured from ductile iron and finished with a rust-inhibiting orange paint coating that provides corrosion protection during storage and service. It is sized for 10-inch nominal pipe with a 10.75-inch outside diameter and is rated for Schedule 40/STD wall pipe. This tee is installed by licensed pipefitters and plumbers working on commercial and industrial piping systems.

The FIG 7060 grooved tee is suited for commercial and industrial mechanical systems that use grooved-end pipe joining methods. The grooved-end configuration allows for fast, tool-based assembly with compatible grooved couplings, eliminating field welding or threading at the tee connection. Typical applications include HVAC hydronic systems, fire protection distribution headers, and process piping where a branch takeoff is needed at a main run. This fitting is domestic-manufactured and carries a 10-inch nominal size rating appropriate for medium to large distribution mains.

Key Features

• Grooved-end style on all three outlets for use with compatible grooved couplings
• Ductile iron construction provides strength and impact resistance for demanding piping environments
• Rust-inhibiting orange paint finish protects against corrosion during installation and service life
• 10-inch nominal size with 10.75-inch OD matches Schedule 40/STD pipe dimensions
• FIG 7060 series product manufactured domestically in the United States

Compatibility

Designed for grooved-end pipes in 10-inch nominal size at Schedule 40/STD wall thickness. Compatible with grooved piping systems using standard grooved couplings and components rated for 10-inch pipe with a 10.75-inch outside diameter.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber in accordance with applicable mechanical codes. Depressurize and drain the piping system fully before cutting into any existing line or installing this fitting. Grooved couplings must be seated and torqued according to the coupling manufacturer's specifications, not this fitting's specifications. Inspect the groove on mating pipe ends for compliance with grooved-end dimensional standards before assembly.

Technical Specifications

• Series: FIG 7060
• Fitting Type: Tee
• Nominal Size: 10 inches
• Outside Diameter: 10.75 inches
• End Style: Grooved
• Schedule Rating: SCH 40/STD
• Material: Ductile Iron
• Finish: Rust Inhibiting Orange Painted
• Weight: 74.47 pounds
• Country of Origin: United States

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 390016962
