Asc Engineered Solutions 390016822 Grooved Tee 2.5 in

Product Description

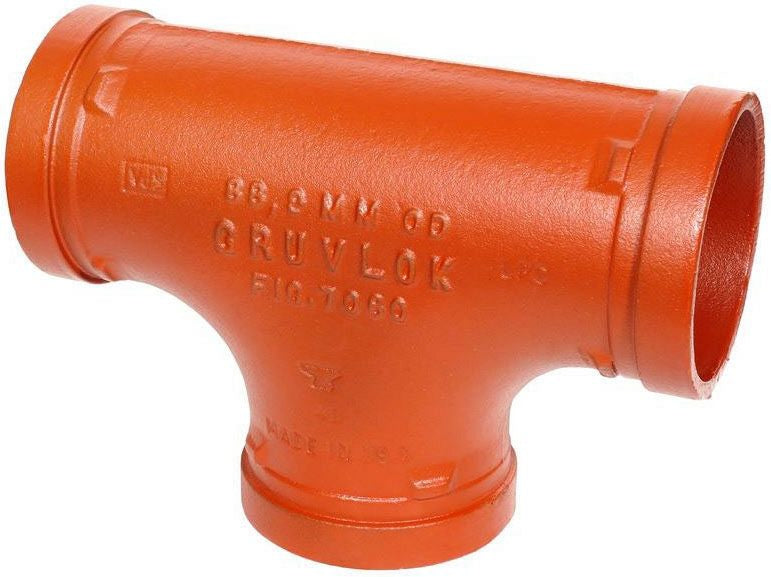

The ASC Engineered Solutions 390016822 is a Gruvlok 7060 grooved painted tee fitting designed for use in piped mechanical systems. This ductile iron tee connects grooved-end pipe in a three-way branch configuration, making it a core component in hydronic, fire protection, and industrial piping assemblies. At 2.5 inches, it fits standard grooved pipe of the same nominal size and arrives with a painted exterior finish that provides baseline corrosion resistance during storage and installation. Pipefitters and mechanical contractors working with grooved coupling systems will find this fitting a direct, OEM-style solution for branching piping runs.

This fitting is suited for commercial and industrial piping applications where grooved mechanical joining systems are specified. Typical installations include HVAC hydronic loops, fire suppression mains, and general industrial process piping. The 7060 tee is installed using compatible grooved couplings on all three outlets, eliminating the need for welding or threading at the connection points. It is appropriate for above-ground and accessible piping installations where grooved joining methods are approved by the applicable mechanical or fire code.

Key Features

• Ductile iron construction provides high tensile strength and impact resistance in demanding piping systems
• 2.5-inch nominal size fits standard grooved-end pipe for straightforward mechanical assembly
• Three-way grooved configuration allows branch takeoffs without welding or threading
• Painted exterior finish offers baseline protection during handling and installation
• Compatible with grooved coupling joining systems for fast, repeatable assembly

Compatibility

Designed as an OEM-style grooved tee fitting for use with standard 2.5-inch grooved-end pipe and compatible grooved mechanical couplings in hydronic, fire protection, and industrial piping systems.

Installation Notes

Installation should be performed by a licensed pipefitter or mechanical contractor familiar with grooved piping systems. Depressurize and drain the piping system before removing or installing any fitting. Verify that mating pipe ends are properly rolled or cut-grooved to the correct groove specification before seating the coupling and tee. Follow applicable mechanical codes and the coupling manufacturer's torque and assembly guidelines for all grooved connections.

Technical Specifications

• Fitting Size: 2.5 inches
• Fitting Material: Ductile Iron
• Finish: Painted
• Weight: 3.97 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 390016822
