Asc Engineered Solutions 390014942 Grooved 45 Deg Elbow 6 in

Product Description

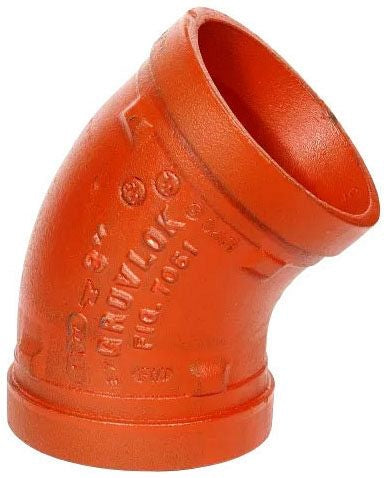

The ASC Engineered Solutions 390014942 is a grooved 45-degree elbow fitting designed for use in piping systems that require a change in flow direction. Part of the Gruvlok 7051 series, this fitting is manufactured from ductile iron and features a painted exterior finish. At 6 inches in size and weighing 10.95 pounds, it is built for demanding mechanical piping applications. Licensed pipefitters and mechanical contractors use this fitting to make 45-degree directional changes in grooved piping systems. It connects using standard grooved-end couplings, which speeds up assembly compared to threaded or flanged connections.

This elbow fitting is suited for commercial and industrial piping installations including HVAC hydronic systems, fire protection piping, and general mechanical piping. The grooved-end design allows for quick installation with compatible grooved couplings and requires no welding at the joint. The painted finish provides a baseline level of corrosion resistance for interior mechanical room environments. Installations typically involve large-diameter pipe runs where 45-degree directional offsets are required.

Key Features

• 45-degree elbow geometry for directional piping offsets
• 6-inch fitting size for large-diameter pipe runs
• Ductile iron construction for strength and durability in mechanical piping
• Painted exterior finish for basic corrosion protection
• Grooved-end design compatible with standard grooved couplings
• No welding required at the joint connection point

Compatibility

Designed as an OEM-style grooved fitting for use with standard 6-inch grooved piping systems and compatible grooved mechanical couplings.

Installation Notes

Installation should be performed by a licensed pipefitter or mechanical contractor. Isolate and depressurize the piping system completely before disassembling any grooved joints or installing this fitting. Verify that the pipe end groove dimensions and coupling style are compatible with this fitting before assembly. Follow applicable mechanical codes and the coupling manufacturer's torque and assembly guidelines when securing the grooved coupling to this elbow.

Technical Specifications

• Fitting Size: 6 inches
• Elbow Degree: 45 degrees
• Fitting Material: Ductile Iron
• Finish: Painted
• Item Weight: 10.95 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 390014942
