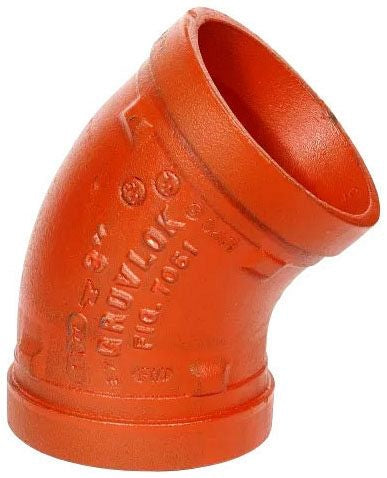

Asc Engineered Solutions 390014785 Grooved 45 Elbow 2 in

Product Description

The ASC Engineered Solutions 390014785 is a grooved 45-degree elbow fitting from the Gruvlok 7051 product line, designed for use in grooved piping systems. Constructed from ductile iron with a painted finish, this fitting provides a reliable directional change in pressurized piping runs. It is sized for 2-inch pipe and connects via standard grooved-end coupling. Licensed pipefitters and mechanical contractors install this type of fitting in commercial and industrial piping systems where grooved mechanical joining is specified.

This 45-degree elbow is suited for grooved piping installations in HVAC hydronic systems, fire suppression mains, and industrial process piping. The grooved-end design allows for tool-based mechanical coupling without welding or threading, making it a common choice on retrofit and new-construction jobs alike. At 1.42 pounds, it is a compact fitting appropriate for moderate-flow directional changes in 2-inch piping networks.

Key Features

• 45-degree elbow geometry for directional changes in grooved piping runs
• Ductile iron construction for strength and durability under pressure
• Painted finish provides basic corrosion protection for dry or indoor environments
• Grooved-end connections compatible with standard mechanical grooved couplings
• 2-inch fitting size for use in mid-range commercial and industrial piping

Compatibility

Designed as an OEM-style replacement or new-installation grooved fitting for 2-inch grooved piping systems using standard mechanical couplings per the Gruvlok 7051 series.

Installation Notes

Installation is performed by licensed pipefitters or mechanical contractors. Depressurize and drain the piping system fully before removing or installing any grooved fittings. Use the appropriate grooved coupling and gasket rated for the system fluid and pressure class. Follow applicable mechanical codes and the coupling manufacturer's torque and assembly guidelines.

Technical Specifications

• Fitting Type: 45-Degree Elbow
• Fitting Size: 2 inches
• Fitting Material: Ductile Iron
• Finish: Painted
• Connection Type: Grooved
• Weight: 1.42 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 390014785
