Asc Engineered Solutions 390014744 Grooved 45 Degree Elbow

Product Description

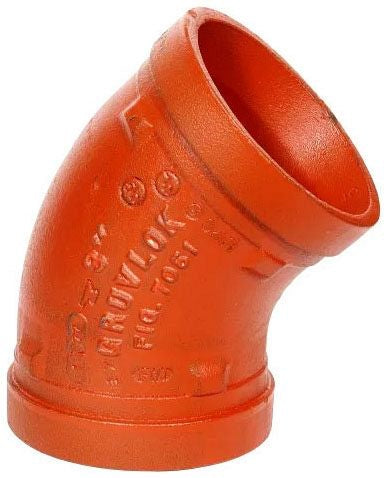

The ASC Engineered Solutions 390014744 is a grooved 45-degree elbow fitting designed for use in piped mechanical systems requiring directional changes in flow. Manufactured from ductile iron with a painted finish, this fitting connects to 1.5-inch grooved pipe ends and works within standard grooved coupling systems. It provides a reliable, rigid directional change at a 45-degree angle and is suited for installation by licensed plumbers, pipefitters, and mechanical contractors working on commercial or industrial piping assemblies.

This fitting is appropriate for grooved piping systems in commercial mechanical, HVAC hydronic, fire protection, and industrial fluid distribution applications. The 1.5-inch size fits standard grooved pipe of the same nominal diameter. The painted ductile iron construction resists corrosion in typical indoor mechanical environments and holds up to the mechanical stresses common in grooved piping layouts.

Key Features

• 45-degree elbow angle for standard directional pipe routing
• Ductile iron construction for strength and durability in mechanical piping
• Painted finish provides corrosion resistance in typical indoor environments
• Grooved end connections compatible with standard grooved coupling systems
• 1.5-inch nominal size for use with matching grooved pipe and couplings

Compatibility

Designed as an OEM-style grooved fitting for use with standard 1.5-inch grooved pipe and grooved mechanical coupling systems in commercial and industrial piping installations.

Installation Notes

Installation is typically performed by licensed pipefitters or plumbers familiar with grooved mechanical piping systems. Depressurize and drain the pipe system completely before removing or installing any grooved fittings. Grooved couplings and gaskets appropriate for the pipe diameter and service conditions must be sourced separately and installed per the coupling manufacturer instructions. Verify that pipe groove dimensions conform to the required standard before assembly.

Technical Specifications

• Fitting Size: 1.5 inches
• Elbow Degree: 45 degrees
• Fitting Material: Ductile Iron
• Finish: Painted
• Weight: 0.84 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 390014744
