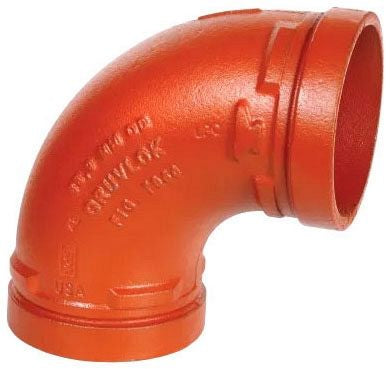

Asc Engineered Solutions 390014363 Grooved 90 Elbow 6 in

Product Description

The ASC Engineered Solutions 390014363 is a grooved 90-degree elbow fitting from the Gruvlok 7050 series, designed for use in grooved piping systems where a right-angle directional change is required. Constructed from ductile iron with a painted finish, this 6-inch elbow delivers the structural integrity and corrosion resistance demanded in mechanical piping applications. At 17.40 pounds, it is built for the demands of commercial and industrial installations. Licensed pipefitters and mechanical contractors working with grooved pipe systems will find this fitting engineered to mate with standard roll-groove or cut-groove pipe ends.

This elbow is suited for commercial mechanical systems including HVAC hydronic piping, fire protection, and industrial fluid distribution where 6-inch grooved pipe is specified. The 90-degree configuration is a standard directional change fitting used in both above-ground and accessible below-ceiling installations. It is intended for systems where grooved mechanical couplings are already specified or in use, allowing for faster assembly compared to welded or flanged alternatives.

Key Features

• 90-degree elbow geometry for right-angle directional changes in grooved piping systems
• Ductile iron construction for high strength and impact resistance
• Painted finish provides baseline corrosion protection for above-ground applications
• 6-inch fitting size compatible with standard grooved pipe ends
• Part of the Gruvlok 7050 series, designed for grooved mechanical coupling systems

Compatibility

Designed as an OEM-style grooved fitting for use with standard 6-inch grooved mechanical coupling systems in commercial HVAC, fire protection, and industrial piping applications.

Installation Notes

Installation should be performed by a licensed pipefitter or mechanical contractor familiar with grooved piping systems. Depressurize and drain the piping system fully before removing or installing any fittings. Verify that pipe ends are properly roll-grooved or cut-grooved to the appropriate specification before seating the coupling. Follow applicable mechanical codes and the coupling manufacturer instructions for gasket selection, bolt torque, and system pressure ratings.

Technical Specifications

• Fitting Size: 6 inches
• Elbow Degree: 90
• Fitting Material: Ductile Iron
• Finish: Painted
• Item Weight: 17.40 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 390014363
