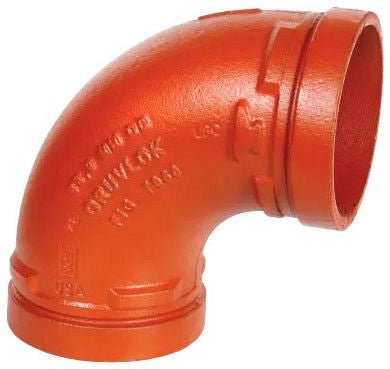

Asc Engineered Solutions 390014207 Grooved 90 Elbow 1.5 in

Product Description

The ASC Engineered Solutions 390014207 is a 1.5-inch grooved 90-degree elbow fitting designed for use in grooved piping systems. Manufactured from ductile iron with a painted finish, this elbow provides a reliable directional change in pressurized piping runs. It is sized at 1.5 inches and weighs 1.08 pounds. Licensed plumbers, pipefitters, and mechanical contractors install this type of fitting in commercial and industrial piping applications where grooved couplings are the specified joining method. Its painted exterior provides basic corrosion resistance for interior installations.

This grooved elbow is suited for use in mechanical piping systems that rely on roll-grooved or cut-grooved pipe connections. Typical applications include HVAC hydronic systems, fire suppression piping, and general mechanical piping where a 90-degree change in flow direction is required. The 1.5-inch size fits within common branch and main line configurations found in light commercial and institutional mechanical rooms.

Key Features

• 90-degree elbow geometry for right-angle directional changes in grooved piping runs
• Ductile iron construction for strength and durability under pressure
• Painted finish for basic corrosion protection in interior environments
• 1.5-inch nominal size compatible with standard grooved pipe ends
• Grooved end connections for use with standard grooved couplings

Compatibility

Designed as an OEM-style grooved fitting for use with standard grooved coupling systems on 1.5-inch ductile iron or steel pipe in mechanical piping applications.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber in accordance with applicable mechanical and plumbing codes. Depressurize and drain the piping system fully before removing or installing any grooved fittings. Inspect pipe ends for proper groove dimensions before seating the coupling. Use the coupling manufacturer's specified gasket and hardware for a proper seal.

Technical Specifications

• Fitting Size: 1.5 inches
• Elbow Degree: 90 degrees
• Fitting Material: Ductile Iron
• Finish: Painted
• Item Weight: 1.08 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 390014207
